| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Tape & Reel |

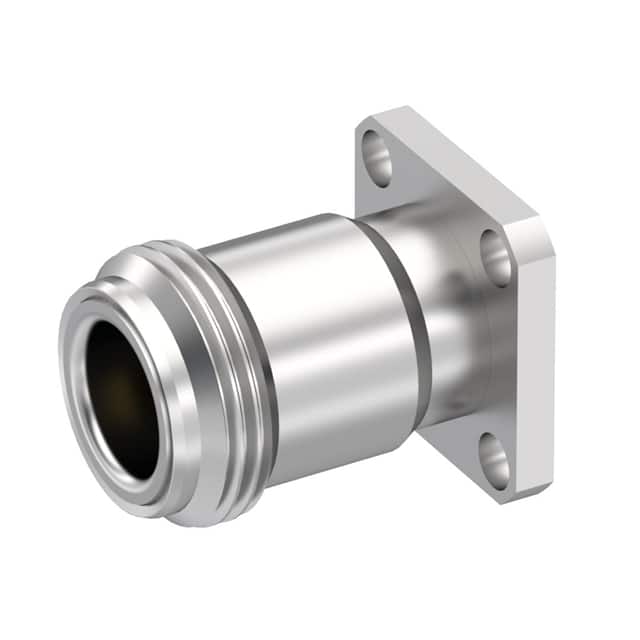

The Radiall R161418000 is a high-performance N Type coaxial connector designed for RF applications requiring reliable signal integrity up to 11 GHz. This jack connector features a female socket center contact made of beryllium copper, ensuring excellent conductivity and durability. The connector is configured for panel mount and through hole installation, with a flange mounting feature for secure attachment. The threaded fastening type provides a robust and stable connection, while the solder cup contact termination and solder shield termination facilitate straightforward assembly. With a characteristic impedance of 50 Ohms, this connector is suitable for a wide range of RF and microwave systems. The silver housing color is typical for N Type connectors, offering good corrosion resistance and RF shielding.
| Qty | Low | High |
|---|---|---|
| 1+ | $20.37 | $20.37 |
| 10+ | $17.32 | $17.32 |
| 25+ | $16.24 | $16.24 |
| 50+ | $15.45 | $15.45 |
| 100+ | $14.71 | $14.71 |
| 250+ | $13.79 | $13.79 |
| 500+ | $13.14 | $13.14 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The impedance is 50 Ohms.
The maximum frequency rating is 11 GHz.
It uses panel mount and through hole mounting with a flange.
The connector style is N Type, and the connector type is Jack, Female Socket.
The contact termination is solder cup, and the shield termination is solder.
The center contact material is beryllium copper.
