| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Impedance | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Tape & Reel |

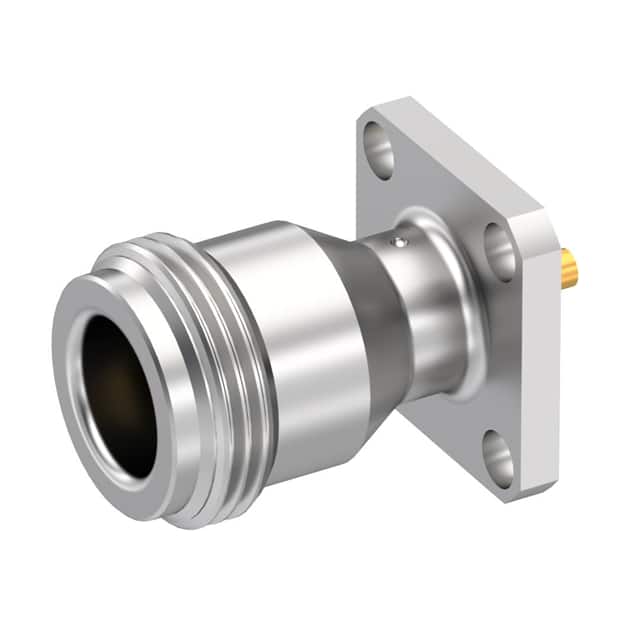

The Radiall R161410000 is a coaxial connector (RF) assembly designed for reliable signal transmission in high-frequency applications. It features an N Type connector style with a jack, female socket configuration, supporting a 50 Ohm impedance and a frequency range up to 11 GHz. This makes it suitable for a variety of RF and microwave systems. The connector is panel mount with a flange for secure installation, and utilizes threaded fastening for robust mating. Both center contact and shield termination are solder type, ensuring a solid electrical connection. The center contact is made of bronze. This connector is RoHS3 compliant and has an MSL of Level 1 (unlimited). It is commonly used in telecommunications, test equipment, and other RF applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $15.89 | $15.89 |
| 10+ | $13.51 | $13.51 |
| 25+ | $12.66 | $12.66 |
| 50+ | $12.05 | $12.05 |
| 100+ | $11.44 | $11.44 |
| 250+ | $10.70 | $10.70 |
| 500+ | $10.24 | $10.24 |
| 1,000+ | $8.70 | $8.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 Ohm.
11 GHz.
Panel mount with flange.
N Type jack, female socket.
Solder for both contact and shield.
Threaded.
RoHS3 compliant (unverified).
