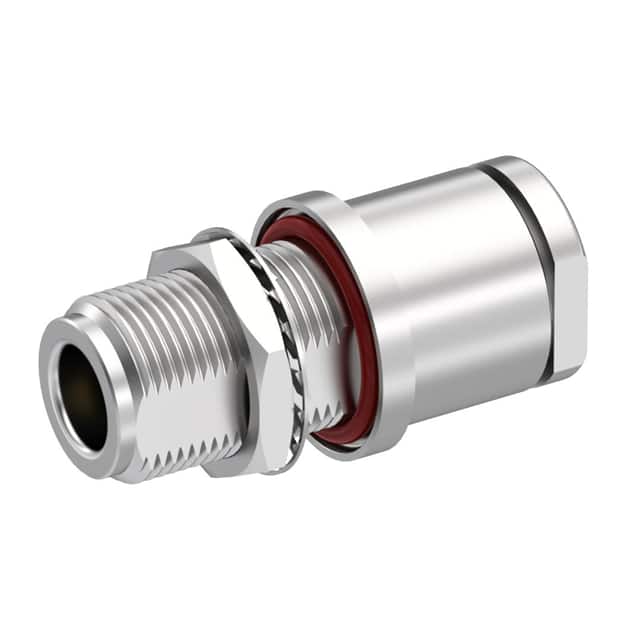

R161332000 Radiall R161332000 is an N Type female jack coaxial connector with 50 Ohm impedance, 11 GHz max frequency, panel mount, and IP67 rating.
Mfr Part #:

R161332000

Available from 1 distributors
Mfr Name: Radiall
Radiall
Radiall R161332000 is an N Type female jack coaxial connector with 50 Ohm impedance, 11 GHz max frequency, panel mount, and IP67 rating.
✓ Total Stock: 30 pcs
$ Price Range: $25.35 - $35.01

R161332000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
30 pcs
On Request
30 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R161332000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Group
Center Contact Material
Connector Style
Connector Type
Contact Termination
Fastening Type
Frequency
Impedance
Ingress Protection
Mounting Feature
Mounting Type
Number of Ports
Shield Termination
Tape & Reel
View Similar Products (0)

R161332000 Description

Short technical summary and product information.

The Radiall R161332000 is an N Type female jack coaxial connector designed for high-frequency applications. It features a 50 Ohm impedance and supports frequencies up to 11 GHz. The connector uses a threaded coupling mechanism for secure fastening and offers a panel mount with bulkhead front side nut installation.



The contact termination is solder type, and the shield termination uses a clamp design. The center contact is made of beryllium copper for reliable electrical performance. This connector is compatible with cable groups RG-213, RG-214, and RG-393.



With an IP67 ingress protection rating, the R161332000 is dust tight and waterproof, making it suitable for outdoor or harsh environments. It is listed as RoHS3 compliant and REACH unaffected, though these compliance claims are unverified.

R161332000 Quick Information

Product Type: Coaxial Connector (RF) Assembly
Series: N Type
Canonical Name: N Type Female Jack Coaxial Connector, Panel Mount, 50 Ohm, 11 GHz
Subcategory: N Type Connector

R161332000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R161332000 Estimated Pricing

Qty Low High
1+ $35.01 $35.01
10+ $29.76 $29.76
25+ $28.52 $28.52
100+ $26.44 $26.44
250+ $25.35 $25.35

Estimated market price range - modelled values for guidance only, not live distributor offers.

R161332000 Features

  • N Type female jack connector.
  • 50 Ohm impedance rating.
  • 11 GHz maximum frequency.
  • Panel mount with bulkhead front side nut.
  • IP67 dust tight and waterproof.

R161332000 Applications

  • Used in RF communication systems.
  • Suitable for outdoor antenna connections.
  • Ideal for high-frequency signal transmission.
  • Compatible with RG-213/214/393 cables.

R161332000 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the mounting type of this connector?

Panel mount with bulkhead front side nut.

What is the connector style and gender?

N Type, Jack (Female Socket).

What is the impedance of this connector?

50 Ohm.

What is the maximum operating frequency?

11 GHz.

What is the ingress protection rating?

IP67 - Dust Tight, Waterproof.

What cable groups is this connector compatible with?

RG-213, RG-214, and RG-393.

What is the contact termination method?

Solder for the center contact, clamp for the shield.
