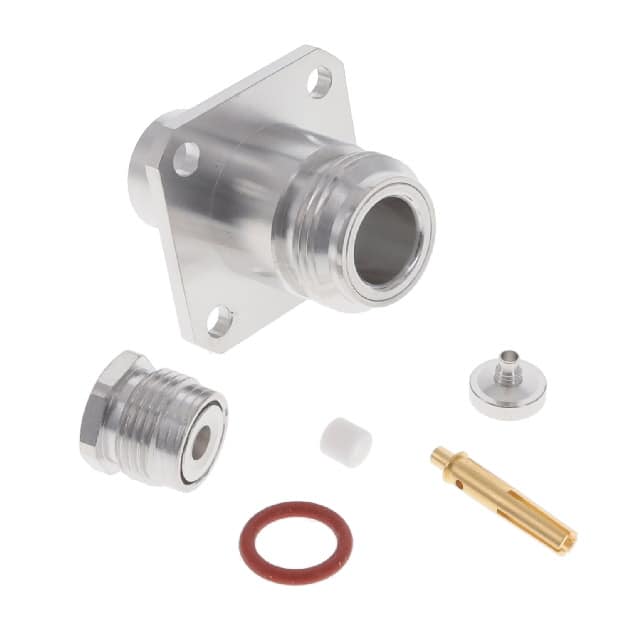

R161252000 N Type straight square flange jack connector by Radiall. Female socket, 50 Ohm impedance, 11 GHz max frequency, IP67 rated. Panel mount with flange, threaded coupling, solder contact termination.
Mfr Part #:

R161252000

Available from 1 distributors
Mfr Name: Radiall
Radiall
N Type straight square flange jack connector by Radiall. Female socket, 50 Ohm impedance, 11 GHz max frequency, IP67 rated. Panel mount with flange, threaded coupling, solder contact termination.
✓ Total Stock: 1 pcs
$ Price Range: $21.89 - $32.32

R161252000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R161252000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Group
Center Contact Material
Connector Style
Connector Type
Contact Termination
Fastening Type
Frequency
Housing Color
Impedance
Ingress Protection
Mounting Feature
Mounting Type
Number of Ports
Shield Termination
Tape & Reel
View Similar Products (0)

R161252000 Description

Short technical summary and product information.

The R161252000 is an N Type straight square flange jack coaxial connector from Radiall. It features a female socket contact with 50 Ohm impedance and supports frequencies up to 11 GHz. The connector is designed for panel mount installation using a square flange, with threaded fastening for secure mating.



This connector uses a beryllium copper center contact and solder termination for the center conductor, with a clamp shield termination. It is compatible with RG-174, RG-316, and RD-316 cable groups. The housing has a silver finish.



The R161252000 carries an IP67 ingress protection rating, making it dust-tight and protected against temporary water immersion. These specifications suit it for demanding RF interconnect applications requiring a reliable environmental seal.

R161252000 Quick Information

Product Type: Coaxial Connector (RF) Assembly
Canonical Name: N Type Straight Square Flange Jack Female Socket Coaxial Connector
Subcategory: N Type Connector

R161252000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R161252000 Estimated Pricing

Qty Low High
1+ $32.32 $32.32
10+ $27.47 $27.47
25+ $25.75 $25.75
50+ $24.52 $24.52
100+ $23.35 $23.35
250+ $21.89 $21.89

Estimated market price range - modelled values for guidance only, not live distributor offers.

R161252000 Features

  • N Type straight square flange jack connector.
  • 50 Ohm impedance, 11 GHz max frequency.
  • IP67 dust-tight and waterproof rating.
  • Panel mount with threaded fastening.
  • Solder contact and clamp shield termination.

R161252000 Applications

  • Suitable for RF interconnect applications.
  • Ideal for outdoor or harsh environment use.
  • Used in wireless communication equipment.
  • Compatible with RG-174 and RG-316 cables.

R161252000 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the connector type and style of the R161252000?

Jack, Female Socket; N Type.

What is the impedance rating of this connector?

50 Ohm.

What is the maximum frequency this connector supports?

11 GHz.

What mounting type and features does it have?

Panel mount with square flange.

What is the ingress protection rating?

IP67 (dust-tight, waterproof).

What cable groups are compatible?

RG-174, RG-316, and RD-316.
