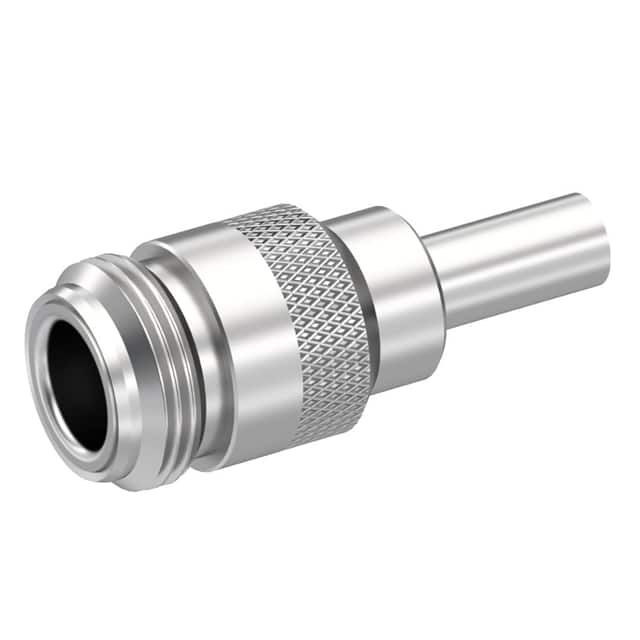

R161238000 N Type female jack connector from Radiall, 50 Ohm impedance, 11 GHz max frequency, with crimp termination and IP67 protection.
Mfr Part #:

R161238000

Available from 1 distributors
Mfr Name: Radiall
Radiall
N Type female jack connector from Radiall, 50 Ohm impedance, 11 GHz max frequency, with crimp termination and IP67 protection.
✓ Total Stock: 6 pcs
$ Price Range: $22.76 - $34.28

R161238000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
6 pcs
On Request
6 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R161238000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Group
Center Contact Material
Connector Style
Connector Type
Contact Termination
Fastening Type
Frequency
Housing Color
Impedance
Ingress Protection
Mounting Type
Number of Ports
Shield Termination
Tape & Reel
View Similar Products (0)

R161238000 Description

Short technical summary and product information.

The Radiall R161238000 is an N Type coaxial connector assembly featuring a female socket (jack) interface. It is designed for 50 Ohm impedance and supports frequencies up to 11 GHz. The connector utilizes a full crimp termination for both the center contact and shield, ensuring reliable connections with RG-142, 223, and 400 cables. The free hanging (in-line) mounting style allows for flexible installation in various RF applications. With an IP67 ingress protection rating, it is dust tight and waterproof, suitable for outdoor or harsh environments. The threaded fastening mechanism ensures secure mating, and the beryllium copper center contact provides excellent conductivity and durability.

R161238000 Quick Information

Product Type: Coaxial Connector (RF) Assembly
Canonical Name: N Type Jack, Female Socket, 50 Ohm, Crimp, Free Hanging, IP67
Subcategory: N Type Jack

R161238000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R161238000 Estimated Pricing

Qty Low High
1+ $34.28 $34.28
10+ $29.13 $29.13
25+ $27.31 $27.31
50+ $24.90 $24.90
100+ $24.47 $24.47
250+ $23.43 $23.43
500+ $22.76 $22.76

Estimated market price range - modelled values for guidance only, not live distributor offers.

R161238000 Features

  • N Type female jack connector, 50 Ohm.
  • Crimp termination for center and shield.
  • IP67 rated: dust tight and waterproof.
  • Free hanging (in-line) mounting style.
  • Threaded fastening for secure mating.

R161238000 Applications

  • Ideal for outdoor RF antenna connections.
  • Used in telecommunications and broadcast equipment.
  • Suitable for RG-142, 223, and 400 cable assemblies.

R161238000 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the mounting style of this connector?

Free hanging (in-line).

What is the impedance of this connector?

50 Ohm.

What is the maximum frequency?

11 GHz.

What is the IP rating?

IP67, dust tight and waterproof.

What termination method is used?

Crimp for both contact and shield.

What cables are compatible?

RG-142, 223, 400.

What type of connector is this?

N Type jack, female socket.
