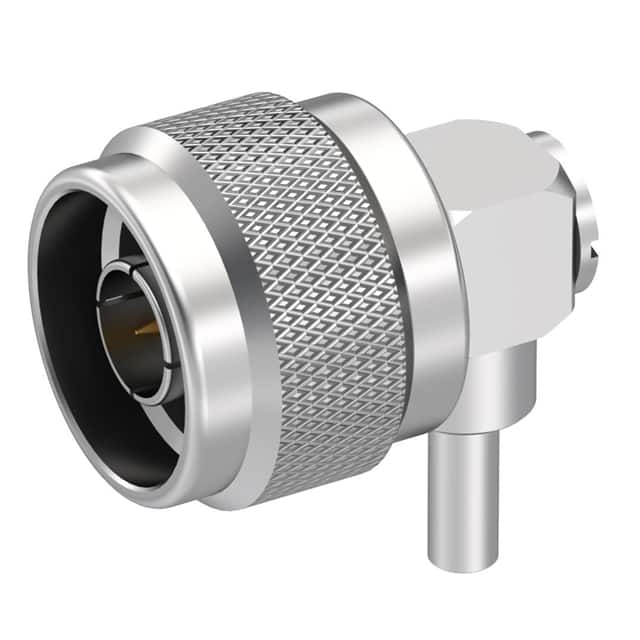

R161182000 Radiall R161182000 is an N Type right angle plug crimp connector with 50 Ohm impedance, IP67 protection, and a threaded coupling. It supports RG-58 and RG-141 cables.
Mfr Part #:

R161182000

Available from 1 distributors
Mfr Name: Radiall
Radiall
Radiall R161182000 is an N Type right angle plug crimp connector with 50 Ohm impedance, IP67 protection, and a threaded coupling. It supports RG-58 and RG-141 cables.
✓ Total Stock: 42 pcs
$ Price Range: $15.39 - $22.91

R161182000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
42 pcs
On Request
42 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R161182000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Body Material
Cable Group
Center Contact Material
Center Contact Plating
Connector Style
Connector Type
Contact Termination
Dielectric Withstanding Voltage
Fastening Type
Frequency
Housing Color
Impedance
Ingress Protection
Insertion Loss
Insulation Resistance
Insulator Material
Mating Cycles
Mounting Type
Number of Ports
Operating Temperature Range
Shield Termination
Tape & Reel
VSWR
Voltage Rating
Weight
View Similar Products (0)

R161182000 Description

Short technical summary and product information.

The Radiall R161182000 is an N Type right angle plug crimp connector designed for use with RG-58 and RG-141 coaxial cables. It features a threaded coupling mechanism and a brass body with BBR plating, ensuring reliable RF performance up to 11 GHz.



This connector offers a maximum VSWR of 1.70 + 0.000 x F(GHz) and a maximum insertion loss of 0.07 √F(GHz) dB. It is rated for a voltage of 850 Veff and has a dielectric withstanding voltage of 1500 Veff minimum. The operating temperature range is -55°C to +155°C.



The connector is IP67 rated for dust and water ingress protection, making it suitable for outdoor or harsh environment applications. It is packaged in a standard quantity of 50 pieces.

R161182000 Quick Information

Product Type: Coaxial Connector (RF) Assembly
Series: N
Canonical Name: N Type Right Angle Plug Crimp Connector, 50 Ohm, IP67
Subcategory: Right Angle Plug

R161182000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R161182000 Estimated Pricing

Qty Low High
1+ $22.91 $22.91
10+ $19.47 $19.47
25+ $18.25 $18.25
50+ $17.15 $17.15
100+ $16.53 $16.53
250+ $15.83 $15.83
500+ $15.39 $15.39

Estimated market price range - modelled values for guidance only, not live distributor offers.

R161182000 Features

  • N Type right angle plug connector.
  • 50 Ohm impedance, 11 GHz max frequency.
  • IP67 rated for dust and water ingress.
  • Crimp termination for center and shield.
  • Threaded coupling for secure connection.

R161182000 Applications

  • Suitable for RF communication systems.
  • Ideal for outdoor antenna connections.
  • Used in test and measurement equipment.
  • Applicable in wireless infrastructure.

R161182000 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the impedance of the R161182000 connector?

The impedance is 50 Ohm.

What is the maximum operating frequency?

The maximum frequency is 11 GHz.

What is the voltage rating?

The maximum voltage rating is 850 Veff.

What is the mounting type?

The mounting type is Free Hanging (In-Line), Right Angle.

What is the operating temperature range?

The operating temperature range is -55°C to +155°C.

What is the ingress protection rating?

The connector is IP67 rated, meaning it is dust tight and waterproof.

What cable types are compatible?

Compatible cables include RG-58 and RG-141.
