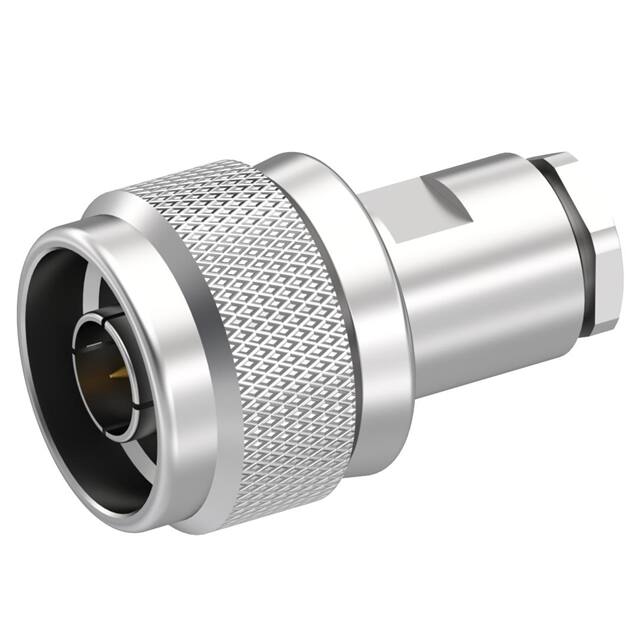

R161022000 Radiall R161022000 is an N Type male pin plug coaxial connector with 50 Ohm impedance, rated for 11 GHz, featuring solder contact and clamp shield termination for free hanging in-line mounting.
Mfr Part #:

R161022000

Available from 1 distributors
Mfr Name: Radiall
Radiall
Radiall R161022000 is an N Type male pin plug coaxial connector with 50 Ohm impedance, rated for 11 GHz, featuring solder contact and clamp shield termination for free hanging in-line mounting.
✓ Total Stock: 4 pcs
$ Price Range: $16.37 - $24.34

R161022000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R161022000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Center Contact Material
Connector Style
Connector Type
Contact Termination
Fastening Type
Frequency
Impedance
Mounting Type
Number of Ports
Shield Termination
Tape & Reel
View Similar Products (0)

R161022000 Description

Short technical summary and product information.

The Radiall R161022000 is an N Type coaxial connector assembly designed for RF applications requiring reliable performance up to 11 GHz. It is a male pin plug with a 50 Ohm characteristic impedance, making it suitable for standard RF systems.



The connector features a threaded fastening mechanism for secure mating and is designed for free hanging (in-line) mounting. Contact termination is via solder, and the shield is terminated with a clamp, ensuring a robust mechanical and electrical connection. The center contact is made of brass, providing good conductivity and durability.

R161022000 Quick Information

Product Type: Coaxial Connector (RF) Assembly
Series: N
Canonical Name: Radiall R161022000 N Type Male Plug Coaxial Connector
Subcategory: N Type Connectors

R161022000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R161022000 Estimated Pricing

Qty Low High
1+ $24.34 $24.34
10+ $20.68 $20.68
25+ $19.39 $19.39
50+ $18.46 $18.46
100+ $17.85 $17.85
250+ $16.86 $16.86
500+ $16.37 $16.37

Estimated market price range - modelled values for guidance only, not live distributor offers.

R161022000 Features

  • 50 Ohm nominal impedance N Type connector.
  • Operates up to 11 GHz maximum frequency.
  • Threaded coupling for secure RF connections.
  • Solder contact and clamp shield termination.
  • Brass center contact for reliable conductivity.

R161022000 Applications

  • Ideal for RF and microwave interconnect assemblies.
  • Used in telecommunications and broadcast equipment.
  • Suitable for test and measurement setups.
  • Common in antenna and cable distribution systems.

R161022000 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the impedance of the R161022000 connector?

The R161022000 has a nominal impedance of 50 Ohms.

What is the maximum frequency rating for this N Type connector?

The maximum frequency is 11 GHz.

What type of mounting does the R161022000 use?

It is designed for free hanging (in-line) mounting.

How is the center contact terminated?

The center contact is terminated with a solder connection.

How is the shield terminated on this connector?

The shield termination is a clamp style.

What is the fastening type of this connector?

The fastening type is threaded.
