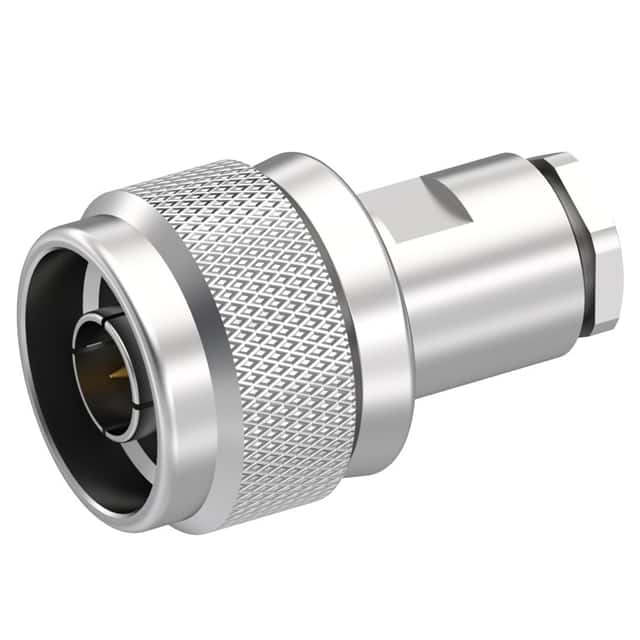

R161012000 Radiall R161012000 N Type straight plug connector with male pin, 50 Ohm impedance, 11 GHz frequency, IP67 rated, clamp/solder termination for RG-59, 62, 71 cables.
Mfr Part #:

R161012000

Available from 1 distributors
Mfr Name: Radiall
Radiall
Radiall R161012000 N Type straight plug connector with male pin, 50 Ohm impedance, 11 GHz frequency, IP67 rated, clamp/solder termination for RG-59, 62, 71 cables.
✓ Total Stock: 7 pcs
$ Price Range: $57.34 - $60.17

R161012000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
7 pcs
On Request
7 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R161012000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Group
Center Contact Material
Connector Style
Connector Type
Contact Termination
Fastening Type
Frequency
Housing Color
Impedance
Ingress Protection
Mounting Type
Number of Ports
Shield Termination
Tape & Reel
View Similar Products (0)

R161012000 Description

Short technical summary and product information.

The Radiall R161012000 is an N Type straight plug coaxial connector designed for use with RG-59, RG-62, and RG-71 cables. It features a male pin contact and a threaded coupling mechanism for secure connections. The connector offers 50 Ohm impedance and supports frequencies up to 11 GHz. It is rated IP67 for dust and water ingress protection, making it suitable for rugged environments. The housing is silver with a brass center contact, and the contact termination is solder while the shield termination is clamp. This connector is RoHS3 compliant (unverified) and has an MSL of 1 (unlimited).

R161012000 Quick Information

Product Type: Coaxial Connector (RF) Assembly
Canonical Name: N Type Straight Plug, Male Pin, Clamp/Solder, 50 Ohm, 11 GHz, IP67
Subcategory: N Type Connector

R161012000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R161012000 Estimated Pricing

Qty Low High
50+ $60.17 $60.17
100+ $57.34 $57.34

Estimated market price range - modelled values for guidance only, not live distributor offers.

R161012000 Features

  • N Type straight plug with male pin.
  • 50 Ohm impedance, 11 GHz frequency.
  • IP67 dust tight and waterproof.
  • Clamp shield and solder contact termination.
  • Compatible with RG-59, 62, 71 cables.

R161012000 Applications

  • Ideal for RF cable assemblies in harsh environments.
  • Used in telecommunications and wireless infrastructure.
  • Suitable for antenna connections and test equipment.
  • Common in military and aerospace applications.
  • Works with RG-59, RG-62, RG-71 cables.

R161012000 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the impedance of the Radiall R161012000?

50 Ohm.

What is the maximum frequency?

11 GHz.

What is the mounting type?

Free Hanging (In-Line).

What is the IP rating?

IP67 - Dust Tight, Waterproof.

What cable types are compatible?

RG-59, RG-62, RG-71.

What is the connector style?

N Type.

What is the contact termination method?

Solder for center contact, clamp for shield.
