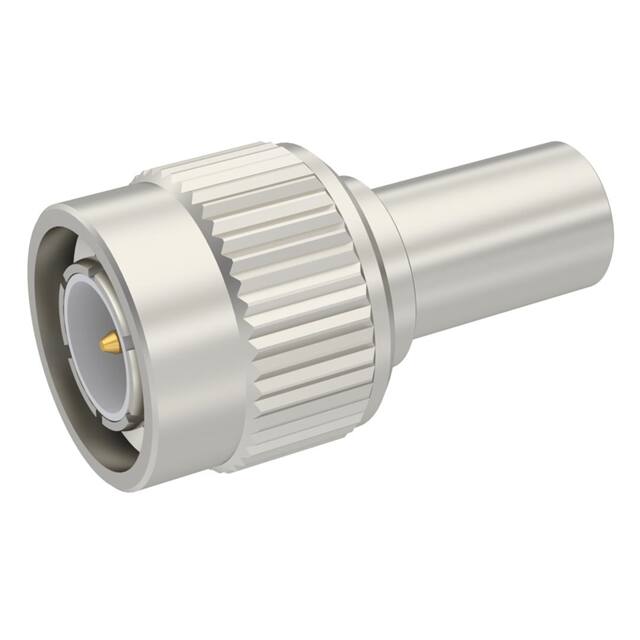

R144085000 The R144085000 is a TNC straight plug crimp connector from Radiall. It features 75 Ohm impedance, 1.5 GHz maximum frequency, and crimp termination for RG-59/62 cables.
Mfr Part #:

R144085000

Available from 1 distributors
Mfr Name: Radiall
Radiall
The R144085000 is a TNC straight plug crimp connector from Radiall. It features 75 Ohm impedance, 1.5 GHz maximum frequency, and crimp termination for RG-59/62 cables.
✓ Total Stock: 312 pcs

R144085000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
312 pcs
On Request
312 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R144085000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Group
Center Contact Material
Connector Style
Connector Type
Contact Termination
Fastening Type
Frequency
Housing Color
Impedance
Mounting Type
Number of Ports
Shield Termination
Tape & Reel
Termination Style
View Similar Products (0)

R144085000 Description

Short technical summary and product information.

The Radiall R144085000 is a TNC straight plug connector designed for RF coaxial applications. It features a male pin contact and a threaded coupling mechanism for secure connections.



This connector offers a characteristic impedance of 75 Ohms and supports frequencies up to 1.5 GHz. It is designed for use with RG-59 and RG-62 cable groups. The center contact is made of brass, and the housing is silver-plated. The connector is free-hanging (in-line) mounted and uses crimp termination for both the contact and shield.



The part is listed as RoHS3 compliant, REACH unaffected, and MSL 1 (unlimited). It is suitable for use in telecommunications, broadcast, and other RF systems requiring 75 Ohm impedance.

R144085000 Quick Information

Product Type: RF Coaxial Connector (TNC)
Canonical Name: TNC Straight Plug Crimp Connector, 75 Ohm, 1.5 GHz, RG-59/62
Subcategory: TNC Connectors

R144085000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R144085000 Features

  • TNC straight plug connector with male pin.
  • 75 Ohm characteristic impedance for RF systems.
  • Frequency range up to 1.5 GHz.
  • Crimp termination for contact and shield.
  • Compatible with RG-59 and RG-62 cables.

R144085000 Applications

  • Used in video surveillance and broadcast systems.
  • Ideal for 75 Ohm RF transmission lines.
  • Suitable for telecommunications infrastructure.
  • Applied in CATV and broadband networks.

R144085000 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the connector style of the R144085000?

TNC.

What is the impedance of this connector?

75 Ohms.

What is the maximum frequency?

1.5 GHz.

What type of termination does it use?

Crimp termination for contact and shield.

What cable groups is it compatible with?

RG-59 and RG-62.

What is the mounting type?

Free Hanging (In-Line).

What is the fastening type?

Threaded.
