| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adapter Series | |
| Adapter Type | |
| Center Contact Plating | |
| Center Gender | |
| Conversion Type | |
| Convert From (Adapter End) | |
| Convert To (Adapter End) | |
| Fastening Type | |
| Frequency | |
| Impedance | |
| Mounting Type | |
| Style | |
| Tape & Reel |

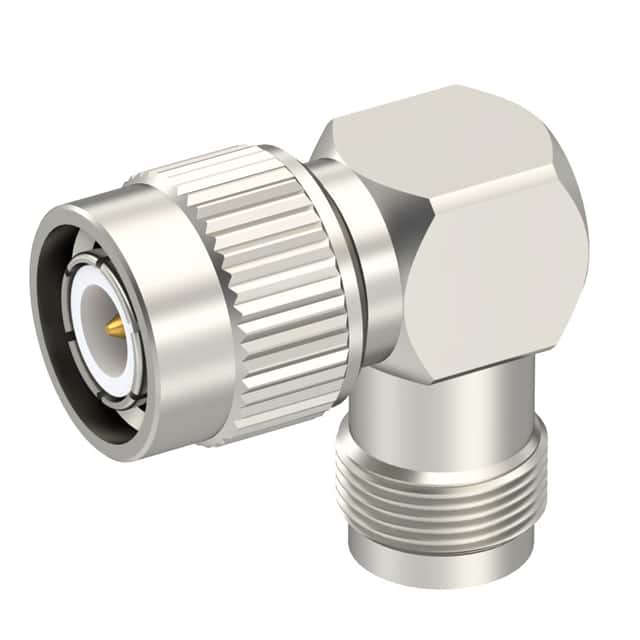

The R143770000 is a coaxial RF adapter from Radiall designed for TNC series connectors. It features a right angle orientation, allowing for space-saving connections in tight installations. The adapter converts from a TNC jack (female socket) to a TNC plug (male pin), with a female to male center gender configuration.
This adapter offers 50 Ohm impedance and supports frequencies up to 4.5 GHz, making it suitable for various RF applications. The center contacts are gold plated for reliable conductivity and corrosion resistance. The adapter uses threaded fastening on both ends for secure connections.
The mounting type is free hanging (in-line), providing flexibility in cable assembly. The adapter is part of the same series conversion, ensuring compatibility within TNC systems. It is RoHS3 compliant and has an MSL rating of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $138.55 | $138.55 |
| 10+ | $117.90 | $117.90 |
| 25+ | $109.11 | $109.11 |
| 50+ | $105.26 | $105.26 |
| 100+ | $103.49 | $103.49 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 Ohms.
4.5 GHz.
Free Hanging (In-Line).
TNC to TNC.
Female to Male.
Threaded, Threaded.
RoHS3 Compliant (unverified).
