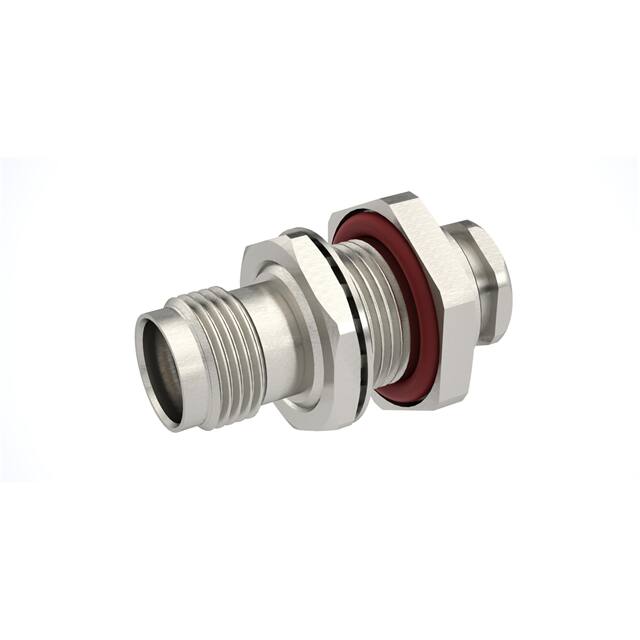

The Radiall R143337000 is a TNC straight bulkhead jack connector designed for RG-402 (.141" semi-rigid) cable. It features a female socket contact and is panel mounted with a bulkhead front side nut and threaded fastening. The connector is constructed with a brass body plated with nickel 2 µm, a beryllium copper center contact plated with gold 0.5 over nickel 2 µm, a PTFE insulator, and a silicone rubber gasket. The shield termination is clamp type, and the contact termination is solder.
Electrically, the connector offers 50 Ohm impedance and operates up to 11 GHz. It has a maximum VSWR of 1.30 + 0.0000 x F(GHz), maximum insertion loss of 0.06 √F(GHz) dB, and RF leakage of -(57 - F(GHz)) dB. The voltage rating is 500 Veff maximum, with a dielectric withstanding voltage of 1500 Veff minimum and insulation resistance of 5000 MΩ minimum.
Mechanically, the connector has a mating life of 500 cycles minimum and a cable retention pull-off force of 270 N minimum. Recommended torque for the panel nut is 370 N.cm and for the clamp nut is 450 N.cm. The weight is 22.25 g. Operating temperature range is -65°C to +105°C. The standard package quantity is 100 pieces.
| Qty | Low | High |
|---|---|---|
| 1+ | $69.89 | $69.89 |
| 10+ | $58.33 | $58.33 |
| 25+ | $57.10 | $57.10 |
| 50+ | $56.39 | $56.39 |
| 100+ | $50.91 | $50.91 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum voltage rating is 500 Veff.
Panel mount with bulkhead front side nut.
50 Ohm.
11 GHz.
RG-402 (.141" semi-rigid) cable.
-65°C to +105°C.
500 cycles minimum.
