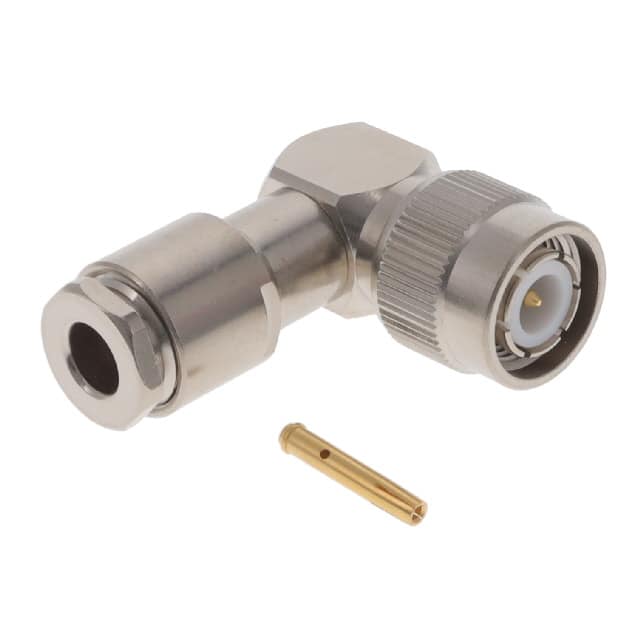

The Radiall R143156000 is a TNC right angle plug connector designed for coaxial cable applications. It features a male pin contact and threaded coupling for secure connections. The connector has a 50 Ohm impedance and operates up to 11 GHz with a maximum VSWR of 1.40 from DC to 6 GHz and 1.60 from 6 to 11 GHz. Insertion loss is 0.07 √F(GHz) dB maximum. The body is made of brass with nickel plating, center contact is brass with gold plating, and insulation is PTFE. It is designed for free hanging (in-line) right angle mounting with solder contact termination and clamp shield termination. The connector supports cable groups RG-58, 141, 142, 223, and 400. It has a voltage rating of 500 Veff and dielectric withstanding voltage of 1500 Veff. The operating temperature range is -65°C to +165°C. The connector weighs 29.8 g and has a mating life of 500 cycles minimum. It is RoHS3 compliant and REACH unaffected (unverified).
| Qty | Low | High |
|---|---|---|
| 1+ | $35.46 | $35.46 |
| 10+ | $30.14 | $30.14 |
| 25+ | $28.78 | $28.78 |
| 50+ | $24.84 | $24.84 |
| 100+ | $24.13 | $24.13 |
| 250+ | $22.62 | $22.62 |
| 500+ | $22.48 | $22.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
500 Veff maximum.
Free hanging (in-line), right angle.
50 Ohms.
DC to 11 GHz.
RG-58, 141, 142, 223, 400.
-65°C to +165°C.
≤1.40 from DC to 6 GHz, ≤1.60 from 6 to 11 GHz.
