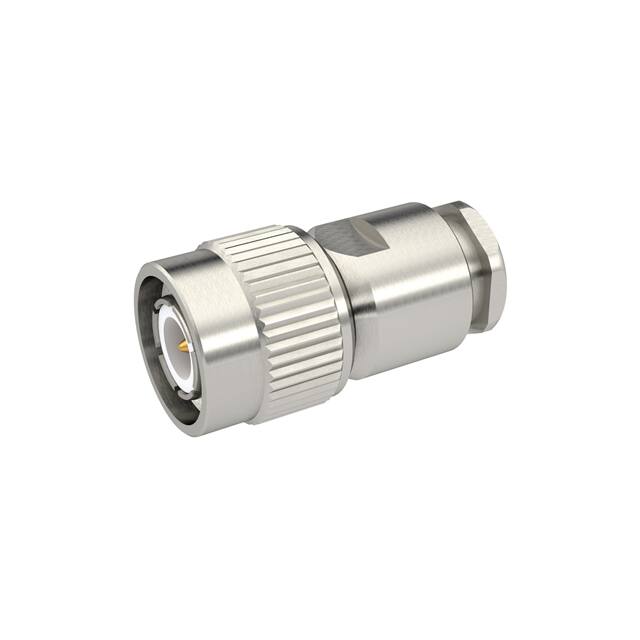

R143052000 Radiall R143052000 is a TNC straight plug, male pin connector with 50 Ohm impedance, operating from DC to 11 GHz. It features a clamp termination for RG-402 semi-rigid cable.
Mfr Part #:

R143052000

Available from 1 distributors
Mfr Name: Radiall
Radiall
Radiall R143052000 is a TNC straight plug, male pin connector with 50 Ohm impedance, operating from DC to 11 GHz. It features a clamp termination for RG-402 semi-rigid cable.
✓ Total Stock: 6 pcs
$ Price Range: $15.72 - $23.38

R143052000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
6 pcs
On Request
6 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R143052000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Approval Agency
Body Material
Cable Group
Center Contact Material
Center Contact Plating
Connector Style
Connector Type
Contact Termination
Dielectric Withstanding Voltage
Fastening Type
Frequency
Housing Color
Impedance
Insertion Loss
Insulation Resistance
Insulator Material
Mounting Type
Number of Ports
Operating Temperature
SVHC Present
Shield Termination
Tape & Reel
VSWR
Voltage Rating
Weight
View Similar Products (0)

R143052000 Description

Short technical summary and product information.

The Radiall R143052000 is a TNC straight plug connector designed for use with RG-402 (.141" semi-rigid) cable. It features a male pin center contact and a threaded coupling mechanism for secure connections.



This connector offers 50 Ohm impedance and operates over a frequency range from DC to 11 GHz. Key electrical specifications include a maximum VSWR of 1.30 + 0.000 x F(GHz), maximum insertion loss of 0.06 √F(GHz) dB, and a voltage rating of 500 V. The body is made of brass with nickel plating, while the center contact is brass with gold over nickel plating.



The connector is designed for free-hanging (in-line) mounting and uses a clamp type shield termination. It has a minimum mating life of 500 cycles and an operating temperature range of -65°C to +105°C.

R143052000 Quick Information

Product Type: Coaxial Connector (RF) Assembly
Canonical Name: Radiall R143052000 TNC Straight Plug, Male Pin, Clamp Type for RG-402 Cable
Subcategory: Straight Plug

R143052000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R143052000 Estimated Pricing

Qty Low High
1+ $23.38 $23.38
10+ $19.87 $19.87
25+ $18.63 $18.63
50+ $17.74 $17.74
100+ $17.14 $17.14
250+ $16.20 $16.20
500+ $15.72 $15.72

Estimated market price range - modelled values for guidance only, not live distributor offers.

R143052000 Features

  • 50 Ohm TNC straight plug connector.
  • Operates from DC to 11 GHz.
  • Clamp termination for RG-402 cable.
  • Brass body with nickel plating.
  • 500 V maximum voltage rating.

R143052000 Applications

  • Suitable for RF signal transmission up to 11 GHz.
  • Used in telecommunications and test equipment.
  • Ideal for semi-rigid cable assemblies.
  • Common in wireless infrastructure applications.

R143052000 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the impedance of the Radiall R143052000 connector?

The impedance is 50 Ohm.

What is the frequency range of this TNC connector?

The frequency range is DC to 11 GHz.

What is the voltage rating of the R143052000?

The maximum voltage rating is 500 V.

What type of cable does this connector work with?

It is designed for RG-402 (.141" semi-rigid) cable.

What is the operating temperature range?

The operating temperature range is -65°C to +105°C.
