| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Group | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| SVHC Present | |
| Shield Termination | |
| Tape & Reel | |
| Termination Style |

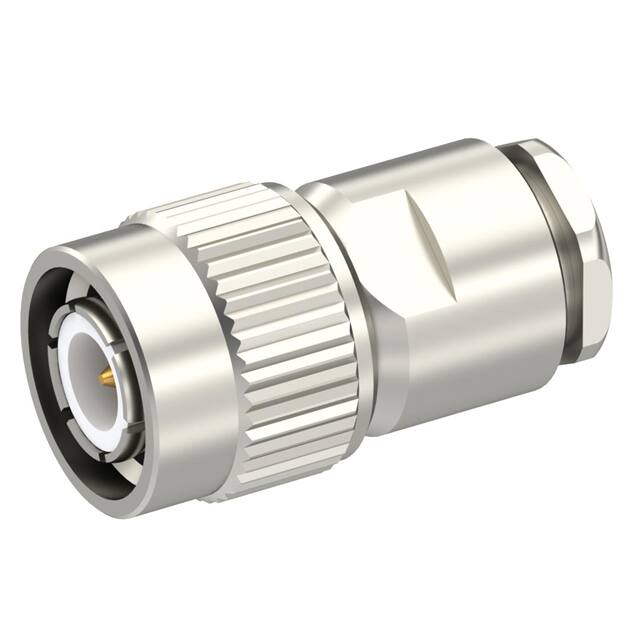

The Radiall R143008000 is a TNC straight plug connector designed for RG-58 and similar coaxial cables. It features a male pin center contact with solder termination and a clamp shield for secure cable attachment. The connector offers a 50 Ohm impedance and supports frequencies up to 11 GHz, making it suitable for RF and wireless applications.
This free hanging (in-line) mount connector uses a threaded fastening mechanism for reliable connections. The silver-plated housing and brass center contact provide good conductivity and corrosion resistance. It is designed for use with cable groups RG-58, 141, 142, 223, and 400.
Typical applications include RF communication systems, test and measurement equipment, and broadband data transmission. The clamp-style shield termination ensures a robust mechanical bond between the connector and cable jacket.
| Qty | Low | High |
|---|---|---|
| 1+ | $15.58 | $15.58 |
| 10+ | $13.25 | $13.25 |
| 20+ | $12.42 | $12.42 |
| 50+ | $11.83 | $11.83 |
| 100+ | $11.25 | $11.25 |
| 200+ | $10.41 | $10.41 |
| 500+ | $10.05 | $10.05 |
| 1,000+ | $9.57 | $9.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Free hanging (in-line) mount.
50 Ohms.
11 GHz.
RG-58, 141, 142, 223, 400.
TNC.
Threaded.
