| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Features | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Tape & Reel | |
| Termination Style |

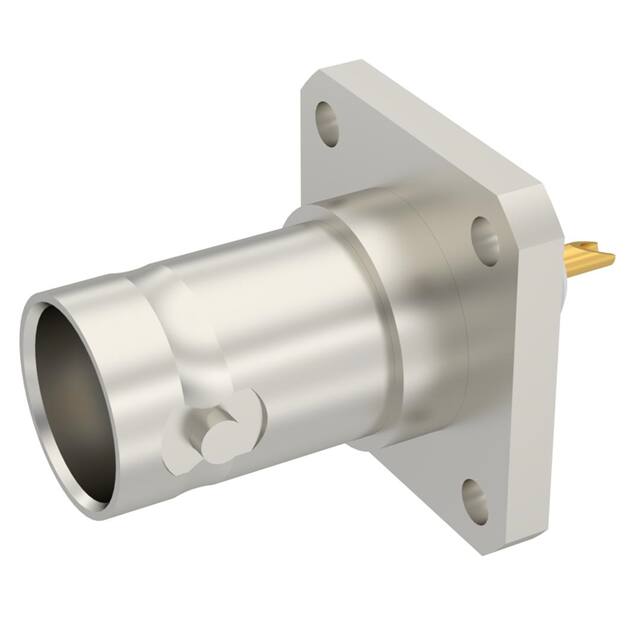

The Radiall R142412000 is a BNC square flange jack receptacle designed for RF applications requiring 75 Ohm impedance. It supports frequencies up to 1.5 GHz, making it suitable for video, broadcast, and telecommunications systems.
The connector features a panel mount with flange design for secure installation. The bayonet lock fastening type ensures reliable mating. Contact termination is via solder cup, and shield termination is solder. The center contact is made of beryllium copper for durability and conductivity.
Extended insulation is included for additional electrical isolation. The housing is silver in color. This connector is RoHS3 compliant and has an MSL rating of 1 (unlimited). It is a single-port, female socket connector.
| Qty | Low | High |
|---|---|---|
| 1+ | $19.39 | $19.39 |
| 10+ | $16.66 | $16.66 |
| 25+ | $15.71 | $15.71 |
| 50+ | $15.48 | $15.48 |
| 100+ | $13.62 | $13.62 |
| 250+ | $12.72 | $12.72 |
| 500+ | $12.24 | $12.24 |
| 1,000+ | $11.84 | $11.84 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Panel mount with flange.
75 Ohm.
Up to 1.5 GHz.
BNC jack, female socket.
Bayonet lock.
Solder cup.
Beryllium copper.
