| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
51 pcs
|
51 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Group | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Tape & Reel |

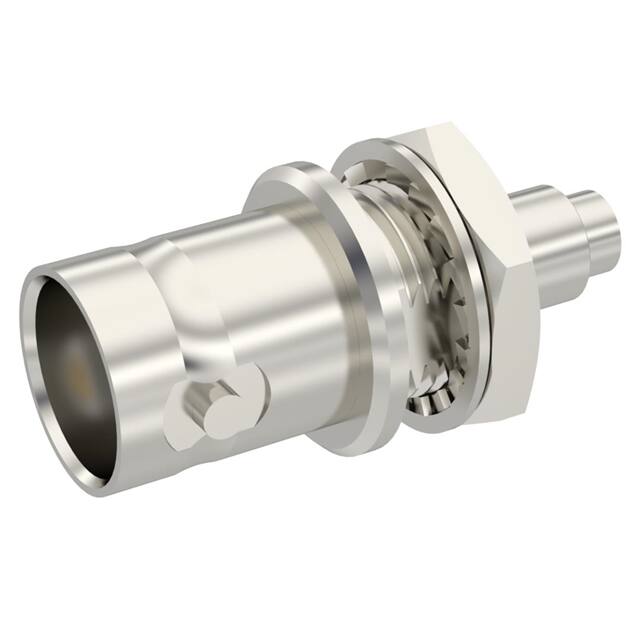

The Radiall R142306503 is a BNC straight bulkhead jack connector designed for RG-179 cable. It features a female socket contact and panel mount with bulkhead rear side nut mounting. The connector provides 75 Ohm impedance with a maximum frequency of 1.5 GHz, making it suitable for video and RF applications requiring low return loss.
Termination is crimp for both contact and shield, ensuring reliable connections. The bayonet lock fastening type provides quick and secure mating. The center contact is made of beryllium copper for good conductivity and durability. The housing is silver in color.
This connector is designed for standard RG-179 coaxial cable and is optimized for 75 Ohm systems. It is RoHS3 and REACH compliant (unverified). The single-port configuration is ideal for bulkhead feedthrough applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.51 | $11.51 |
| 10+ | $9.79 | $9.79 |
| 20+ | $9.18 | $9.18 |
| 50+ | $8.74 | $8.74 |
| 100+ | $8.31 | $8.31 |
| 200+ | $7.69 | $7.69 |
| 500+ | $7.42 | $7.42 |
| 1,000+ | $7.07 | $7.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Panel mount with bulkhead rear side nut.
75 Ohm.
1.5 GHz.
RG-179.
Crimp for both contact and shield.
BNC, female socket, jack.
RoHS3 compliant (unverified).
