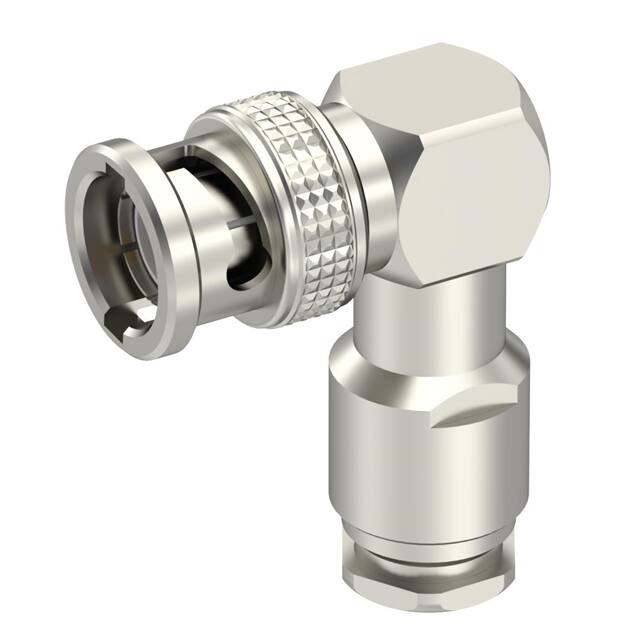

R142154000 Radiall R142154000 is a BNC right angle plug with male pin contact, 75 Ohm impedance, solder termination, and clamp shield for RG-179/188/316 cables.
Mfr Part #:

R142154000

Available from 1 distributors
Mfr Name: Radiall
Radiall
Radiall R142154000 is a BNC right angle plug with male pin contact, 75 Ohm impedance, solder termination, and clamp shield for RG-179/188/316 cables.
✓ Total Stock: 3 pcs
$ Price Range: $16.36 - $23.89

R142154000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R142154000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Group
Center Contact Material
Connector Style
Connector Type
Contact Termination
Fastening Type
Frequency
Housing Color
Impedance
Mounting Type
Number of Ports
Shield Termination
Tape & Reel
View Similar Products (0)

R142154000 Description

Short technical summary and product information.

The Radiall R142154000 is a BNC coaxial connector assembly designed as a right angle plug with a male pin center contact. It features a bayonet lock fastening for secure quick connections and is intended for free-hanging in-line mounting. The connector uses solder contact termination and a clamp shield termination, making it suitable for RG-179, RG-188, and RG-316 cable groups.



This connector is rated for a maximum frequency of 1.5 GHz and a characteristic impedance of 75 Ohms. The center contact is made of brass, and the housing has a silver color. It is classified as RoHS3 Compliant, MSL 1 Unlimited, and REACH Unaffected, though these compliance claims are unverified.



Designed for RF signal applications requiring a right-angle interconnect, this plug combines mechanical reliability with electrical performance in a compact form factor.

R142154000 Quick Information

Product Type: Coaxial Connector (RF) Assembly
Canonical Name: BNC Right Angle Plug, Male Pin, Solder/Clamp for RG-179/188/316, 75 Ohm
Subcategory: BNC Plug, Right Angle

R142154000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R142154000 Estimated Pricing

Qty Low High
1+ $23.89 $23.89
10+ $20.30 $20.30
20+ $19.03 $19.03
50+ $18.13 $18.13
100+ $16.61 $16.61
200+ $16.60 $16.60
500+ $16.36 $16.36

Estimated market price range - modelled values for guidance only, not live distributor offers.

R142154000 Features

  • 75 Ohm BNC plug for RG-179/188/316 cables.
  • Right angle design for space-constrained layouts.
  • Solder contact termination with clamp shield.
  • Bayonet lock for secure quick connection.
  • Rated up to 1.5 GHz operation.

R142154000 Applications

  • Suitable for RF signal interconnections.
  • Used in telecommunications and broadcast equipment.
  • Ideal for test and measurement setups.
  • Applicable in video surveillance systems.
  • Works with 75 Ohm video and data lines.

R142154000 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the impedance of the R142154000 connector?

75 Ohms.

What cable types does the R142154000 support?

RG-179, RG-188, and RG-316 cables.

What is the maximum frequency rating of the R142154000?

1.5 GHz.

What termination methods does the R142154000 use?

Solder contact termination and clamp shield termination.

Is the R142154000 connector RoHS compliant?

Listed as RoHS3 Compliant, but the claim is unverified.
