| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Body Material | |
| Center Contact Material | |
| Center Contact Plating | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Insulation Resistance | |
| Insulator Material | |
| Mounting Type | |
| Number of Ports | |
| Operating Temperature | |
| Shield Termination | |
| Tape & Reel | |
| Termination Style | |
| VSWR | |
| Voltage Rating | |
| Weight |

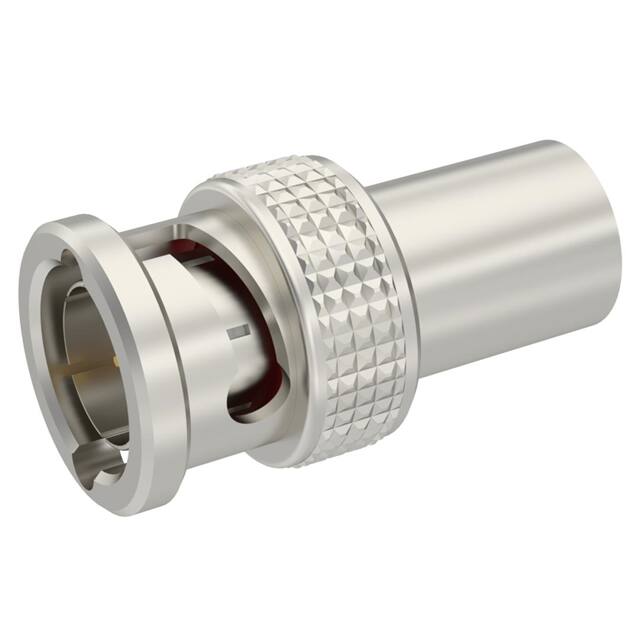

The Radiall R142090000 is a BNC 75 Ohm straight plug crimp connector designed for in-line cable termination. It features a brass body with nickel plating and a brass center contact with gold plating. The insulator is made of PTFE, and the connector uses a bayonet lock for secure mating.
Electrical characteristics include a 75 Ohm impedance, a maximum frequency of 1 GHz, a maximum VSWR of 1.30, a maximum voltage rating of 500 V, and a minimum insulation resistance of 5000 MOhm. The connector is rated for a minimum of 500 mating cycles and operates over a temperature range of -65 to +165 degrees Celsius.
This connector uses a crimp termination for both the center contact and the shield. It is designed for use with cables such as the Belden 8281. The standard package quantity is 100 units.
| Qty | Low | High |
|---|---|---|
| 1+ | $13.17 | $13.17 |
| 10+ | $11.67 | $11.67 |
| 25+ | $11.22 | $11.22 |
| 50+ | $10.77 | $10.77 |
| 100+ | $10.18 | $10.18 |
| 250+ | $9.28 | $9.28 |
| 500+ | $8.68 | $8.68 |
| 1,000+ | $7.96 | $7.96 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The impedance is 75 Ohms.
The maximum frequency is 1 GHz.
The maximum voltage rating is 500 V.
It uses a crimp termination for both the center contact and the shield.
The mounting type is Free Hanging (In-Line).
The operating temperature range is -65 to +165 degrees Celsius.
The body is made of brass with a nickel plating of 2 micrometers.
