R142076161

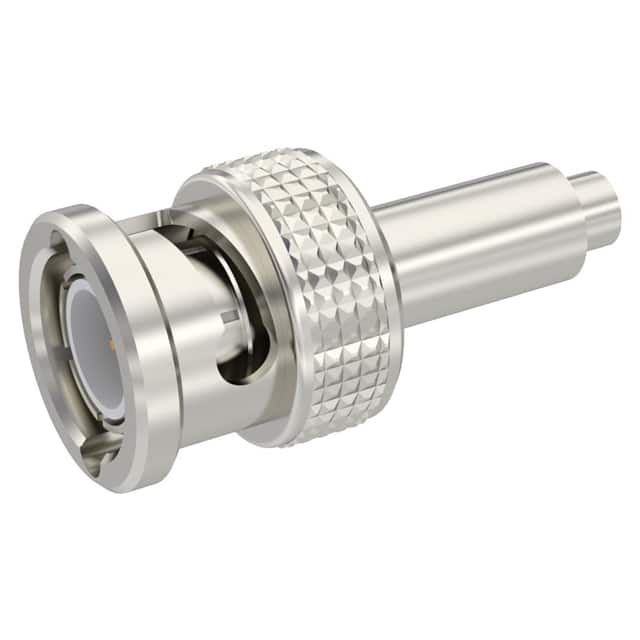

The Radiall R142076161 is a BNC 75 Ohm straight plug connector with crimp termination for both center contact and shield. It is designed for use with RG-179 and RG-187 cables. The connector features a nickel-plated brass body, a brass center contact with gold over nickel plating, a polypropylene insulator, and a silicone rubber gasket. Electrical characteristics include an impedance of 75 Ohms, a frequency range of 0 to 3 GHz, maximum VSWR of 1.40 + 0.0000 x F(GHz), maximum insertion loss of 0.115 sqrt(F(GHz)) dB, voltage rating of 335 Veff, dielectric withstanding voltage of 1000 Veff minimum, and insulation resistance of 5000 MOhm minimum. Mechanical specifications include center contact retention of 10 N minimum at both ends, cable retention of 40 N minimum, and a mating life of 100 cycles minimum. The connector is free hanging (in-line) with a bayonet lock fastening type. Operating temperature range is -35 to +70°C. Weight is 10 g. Standard unit packaging is 100 pieces. This connector is suitable for RF signal transmission in video, broadcast, and telecommunications applications.
