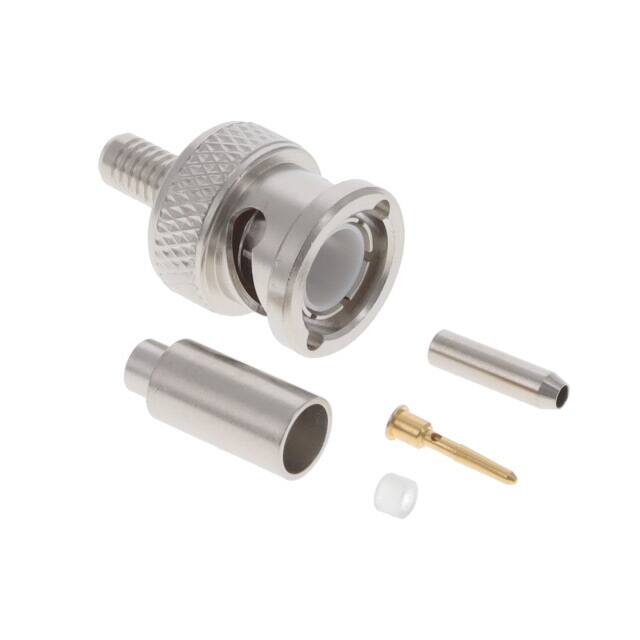

R142076000 Radiall R142076000 is a BNC straight plug crimp connector with 75 Ohm impedance, designed for RG-179 cable. It features a bayonet lock fastening and free hanging mounting.
Mfr Part #:

R142076000

Available from 1 distributors
Mfr Name: Radiall
Radiall
Radiall R142076000 is a BNC straight plug crimp connector with 75 Ohm impedance, designed for RG-179 cable. It features a bayonet lock fastening and free hanging mounting.
✓ Total Stock: 14 pcs
$ Price Range: $6.60 - $10.76

R142076000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
14 pcs
On Request
14 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R142076000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Group
Center Contact Material
Connector Style
Connector Type
Contact Termination
Fastening Type
Frequency
Housing Color
Impedance
Mounting Type
Number of Ports
Shield Termination
Tape & Reel
Termination Style
View Similar Products (0)

R142076000 Description

Short technical summary and product information.

The Radiall R142076000 is a BNC straight plug crimp connector designed for coaxial cable applications. It features a male pin center contact made of brass and a silver-colored housing. The connector offers a 75 Ohm impedance and supports frequencies up to 1.5 GHz.



This connector uses a bayonet lock fastening type for secure connections and is designed for free hanging (in-line) mounting. Both the contact and shield terminations are crimp style, making it suitable for field termination with standard crimp tools. It is compatible with RG-179 cable groups.



The connector is RoHS3 compliant and has an MSL of 1 (unlimited). It is a single-port plug connector, ideal for RF signal transmission in video, broadcast, and telecommunications equipment where 75 Ohm impedance is required.

R142076000 Quick Information

Product Type: Coaxial Connector (RF) Assembly
Canonical Name: BNC Straight Plug Crimp Connector, 75 Ohm, RG-179
Subcategory: Coaxial Connector (RF) Assemblies

R142076000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R142076000 Estimated Pricing

Qty Low High
1+ $10.76 $10.76
10+ $9.15 $9.15
20+ $8.57 $8.57
50+ $8.16 $8.16
100+ $7.77 $7.77
200+ $7.19 $7.19
500+ $6.93 $6.93
1,000+ $6.60 $6.60

Estimated market price range - modelled values for guidance only, not live distributor offers.

R142076000 Features

  • BNC straight plug crimp connector.
  • 75 Ohm impedance for RF applications.
  • Supports frequencies up to 1.5 GHz.
  • Crimp termination for center and shield.
  • Bayonet lock fastening type.

R142076000 Applications

  • Ideal for video and broadcast equipment.
  • Used in telecommunications RF circuits.
  • Suitable for RG-179 cable assemblies.
  • Common in test and measurement setups.

R142076000 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the impedance of the Radiall R142076000?

The impedance is 75 Ohm.

What is the maximum frequency of this connector?

The maximum frequency is 1.5 GHz.

What type of mounting does this connector use?

Free hanging (in-line) mounting.

What cable group is this connector compatible with?

RG-179 cable.

What is the termination style for this connector?

Crimp termination for both contact and shield.

What is the fastening type of this BNC connector?

Bayonet lock.

What is the connector style and type?

BNC style, plug with male pin.
