R142016161 BNC straight plug clamp type connector with 75 Ohm impedance, rated for 1.5 GHz. Features solder contact termination and clamp shield termination for RG-59 cable.
Mfr Part #:

R142016161

Available from 1 distributors
Mfr Name: Radiall
Radiall
BNC straight plug clamp type connector with 75 Ohm impedance, rated for 1.5 GHz. Features solder contact termination and clamp shield termination for RG-59 cable.
✓ Total Stock: 1 pcs
$ Price Range: $9.02

R142016161 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R142016161 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Group
Center Contact Material
Connector Style
Connector Type
Contact Termination
Fastening Type
Frequency
Housing Color
Impedance
Mounting Type
Number of Ports
Shield Termination
Termination Style
View Similar Products (0)

R142016161 Description

Short technical summary and product information.

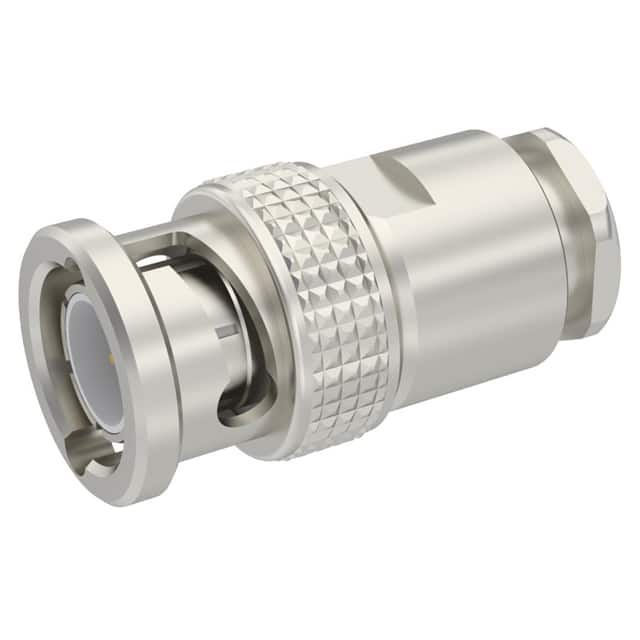

The R142016161 is a BNC coaxial connector assembly manufactured by Radiall. It is a straight plug with a male pin center contact, designed for RG-59 cable. The connector features a 75 Ohm impedance and is rated for frequencies up to 1.5 GHz. It uses a bayonet lock fastening type for secure connection and is free hanging (in-line) mounting. The center contact is made of brass, and the housing is silver in color. Contact termination is solder, while shield termination is clamp style. This connector is suitable for applications requiring reliable RF connections in video, broadcast, and telecommunications equipment. The single-port design ensures simple and effective signal transmission.

R142016161 Quick Information

Product Type: Coaxial Connector (RF) Assembly
Canonical Name: BNC Connector, Plug, Male Pin, 75 Ohm, Free Hanging (In-Line), Bayonet Lock, Solder Contact, Clamp Shield
Subcategory: BNC Connector

R142016161 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R142016161 Estimated Pricing

Qty Low High
100+ $9.02 $9.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

R142016161 Features

  • 75 Ohm BNC male pin connector.
  • Rated for 1.5 GHz operation.
  • Solder contact with clamp shield.
  • Free hanging in-line mounting.
  • Bayonet lock fastening.

R142016161 Applications

  • Used in video surveillance systems.
  • Ideal for broadcast equipment.
  • Suitable for RF test setups.
  • Connects RG-59 coaxial cables.

R142016161 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the impedance of the R142016161 connector?

75 Ohm.

What is the frequency rating of this BNC connector?

1.5 GHz.

What type of mounting does this connector use?

Free hanging (in-line).

What cable is the R142016161 designed for?

RG-59 cable.

What termination methods are used?

Solder for the center contact, clamp for the shield.

What is the fastening type?

Bayonet lock.
