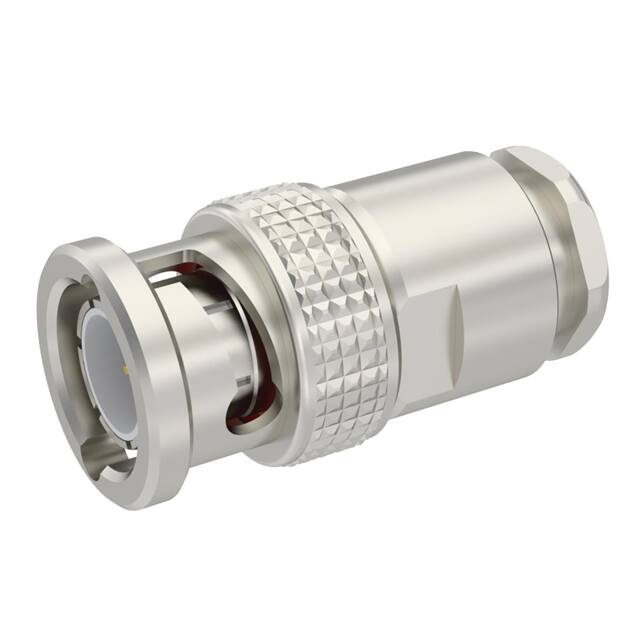

The Radiall R142016000 is a 75 Ohm BNC straight plug clamp type connector designed for use with RG-59 cable. It features a brass body with nickel plating, a gold-plated brass center contact, and a PTFE insulator for reliable RF performance up to 1.5 GHz. The connector offers a maximum VSWR of 1.3 and insertion loss of 0.115 dB, making it suitable for video and data transmission applications.
The connector uses a bayonet lock fastening mechanism for quick and secure mating. The contact is terminated via solder, and the shield is terminated with a clamp, ensuring a robust mechanical connection. The operating temperature range is -65 to +165 °C, and the connector can withstand up to 500 mating cycles. The clamp nut torque is specified at 450 N.cm, and cable retention pull-off force is 136 N minimum.
This connector is packaged in standard units of 100 pieces. It is designed for free hanging (in-line) mounting and is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 100+ | $9.49 | $9.49 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
75 Ohm.
1.5 GHz.
RG-59 cable.
-65 to +165 °C.
500 Veff maximum.
Maximum 1.3 from 0 to 1.5 GHz.
500 cycles minimum.
