R141780000 Radiall R141780000 is a BNC T-Shape adapter with 50 Ohm impedance and 4 GHz max frequency, featuring a plug to dual jack configuration with gold plated center contacts.
Mfr Part #:

R141780000

Available from 1 distributors
Mfr Name: Radiall
Radiall
Radiall R141780000 is a BNC T-Shape adapter with 50 Ohm impedance and 4 GHz max frequency, featuring a plug to dual jack configuration with gold plated center contacts.
✓ Total Stock: 19 pcs
$ Price Range: $25.89 - $38.22

R141780000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
19 pcs
On Request
19 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R141780000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Adapter Series
Adapter Type
Center Contact Plating
Center Gender
Conversion Type
Convert From (Adapter End)
Convert To (Adapter End)
Fastening Type
Frequency
Impedance
Mounting Type
Style
View Similar Products (0)

R141780000 Description

Short technical summary and product information.

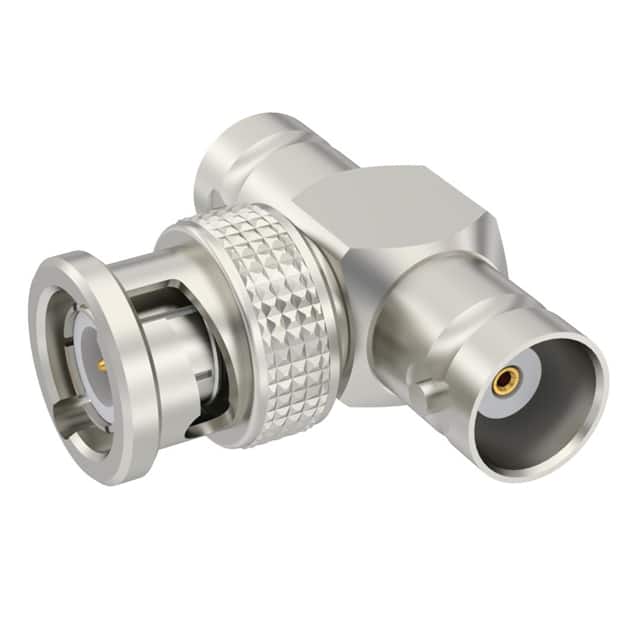

The Radiall R141780000 is a BNC T-Shape coaxial adapter designed for in-line free hanging mounting. It converts a single BNC plug (male pin) to two BNC jacks (female sockets), enabling signal splitting or distribution in RF systems.



This adapter offers a characteristic impedance of 50 Ohms and supports frequencies up to 4 GHz, making it suitable for a wide range of RF and telecommunications applications. The center contacts are gold plated for reliable conductivity and corrosion resistance.



Mechanically, the adapter features bayonet lock fastening on both ends for secure and quick connections. The T-shape style allows for compact signal routing in tight spaces.

R141780000 Quick Information

Product Type: Coaxial Connector (RF) Adapter
Series: BNC to BNC, Dual
Canonical Name: BNC T-Shape Adapter, Plug to Dual Jack, 50 Ohm, 4 GHz
Subcategory: T-Shape Adapter

R141780000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: Non-Compliant

R141780000 Estimated Pricing

Qty Low High
1+ $38.22 $38.22
10+ $32.48 $32.48
30+ $30.06 $30.06
50+ $29.00 $29.00
100+ $27.61 $27.61
250+ $25.89 $25.89

Estimated market price range - modelled values for guidance only, not live distributor offers.

R141780000 Features

  • 50 Ohm characteristic impedance adapter.
  • 4 GHz maximum operating frequency.
  • BNC plug to dual BNC jack configuration.
  • Gold plated center contacts.
  • Bayonet lock fastening on both ends.

R141780000 Applications

  • RF signal splitting and distribution.
  • Test and measurement equipment setups.
  • Telecommunications infrastructure connections.
  • Broadcast video signal routing.

R141780000 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the impedance of the R141780000?

50 Ohms.

What is the maximum frequency of this adapter?

4 GHz.

What type of connector does this adapter have?

It converts a BNC plug (male pin) to two BNC jacks (female sockets).

What is the mounting style of the R141780000?

Free hanging (in-line).

What is the fastening type?

Bayonet lock on both ends.

Is the R141780000 RoHS compliant?

RoHS3 compliant (unverified).
