| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
111 pcs
|
111 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adapter Series | |
| Adapter Type | |
| Center Contact Plating | |
| Center Gender | |
| Conversion Type | |
| Convert From (Adapter End) | |
| Convert To (Adapter End) | |
| Fastening Type | |
| Frequency | |
| Impedance | |
| Mounting Type | |
| Style |

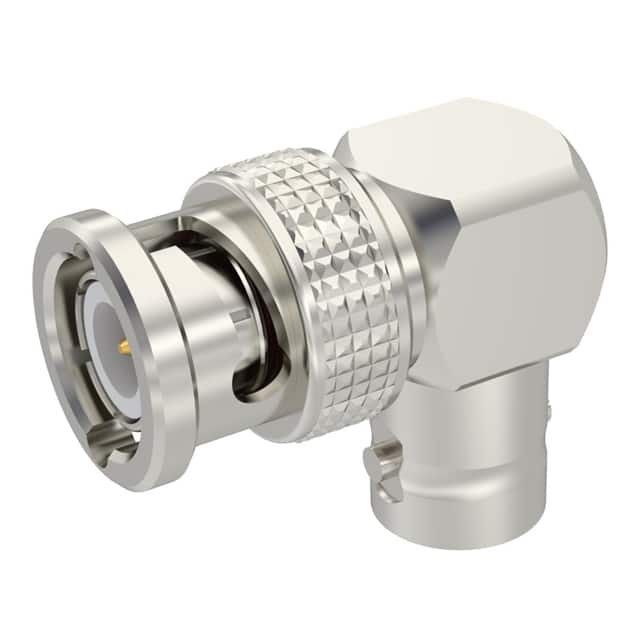

The Radiall R141770000 is a BNC to BNC coaxial adapter designed for right angle, in-line mounting. It converts a BNC plug with male pin to a BNC jack with female socket, making it a plug-to-jack adapter within the same series.
This adapter features a 50 Ohm impedance and is rated for frequencies up to 4 GHz. The center contacts are gold plated for reliable signal integrity, and the fastening type is a bayonet lock for secure connections.
The adapter is free hanging and right angle, suitable for applications where space constraints require a 90-degree connection. It is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 100+ | $25.76 | $25.76 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The impedance is 50 Ohms.
The frequency rating is 4 GHz.
It converts from a BNC plug, male pin to a BNC jack, female socket.
The mounting type is free hanging (in-line), right angle.
The part is listed as RoHS3 compliant, though this is unverified.
