| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
285 pcs
|
285 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Features | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination |

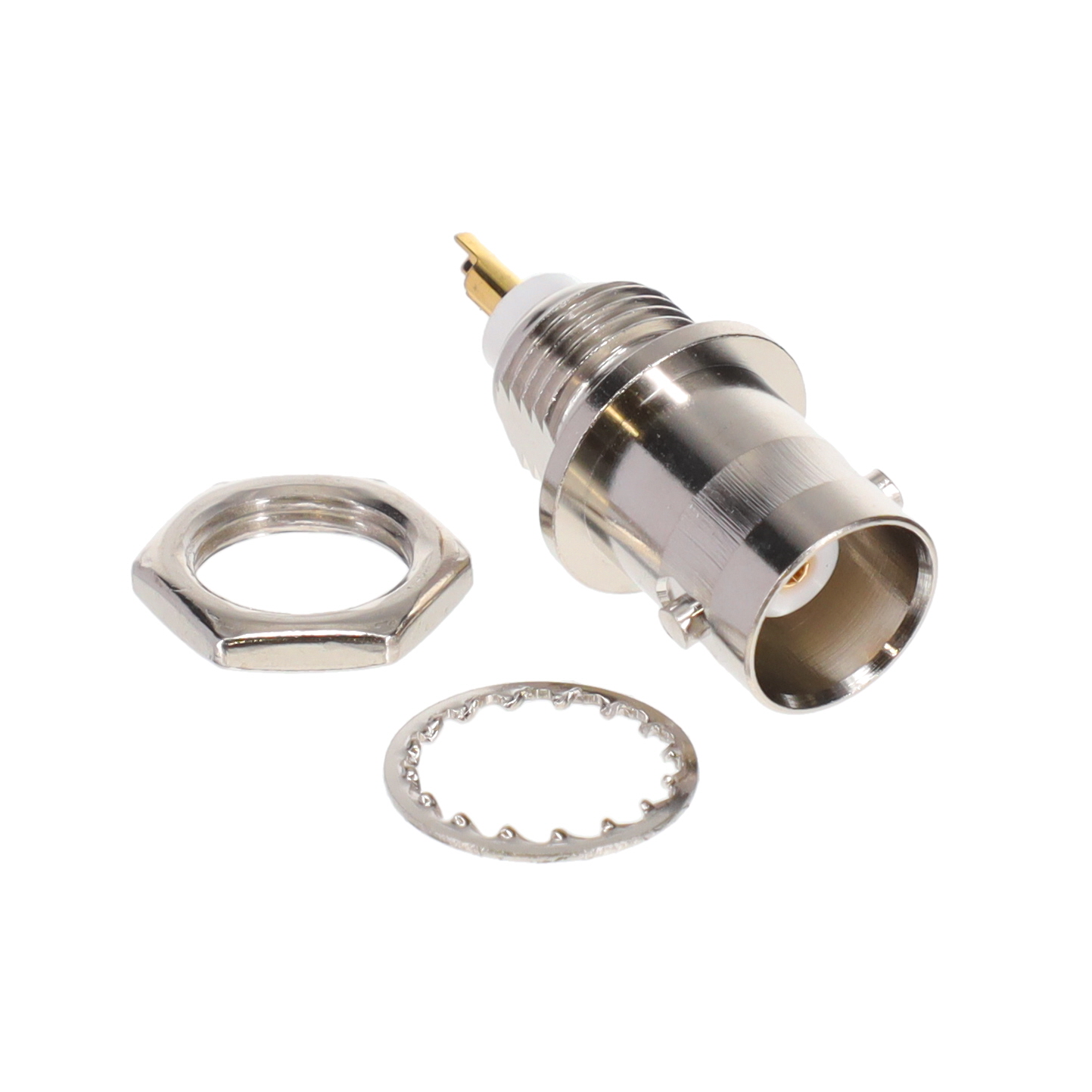

The Radiall R141563161 is a BNC bulkhead jack receptacle designed for RF applications requiring 50 Ohm impedance. It supports frequencies up to 1.5 GHz, making it suitable for a range of signal transmission uses. The connector features a female jack interface with a bayonet lock for quick and secure coupling. Mounting is panel mount via a bulkhead with rear side nut, providing a stable installation. The center contact is terminated with a solder cup, and the shield is terminated with solder, ensuring reliable connections. The center contact is made of brass, and the housing is silver. An extended insulation feature is included for enhanced signal integrity. This connector claims RoHS3 compliance, REACH unaffected status, and MSL 1 (Unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $11.06 | $11.06 |
| 10+ | $9.40 | $9.40 |
| 25+ | $8.81 | $8.81 |
| 50+ | $8.39 | $8.39 |
| 100+ | $7.99 | $7.99 |
| 300+ | $7.39 | $7.39 |
| 500+ | $7.13 | $7.13 |
| 1,000+ | $6.79 | $6.79 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 Ohm.
1.5 GHz.
BNC, Jack, Female Socket.
Panel mount with bulkhead rear side nut.
Bayonet lock.
Solder cup for center contact, solder for shield.
Brass.
