| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Lead Style | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination |

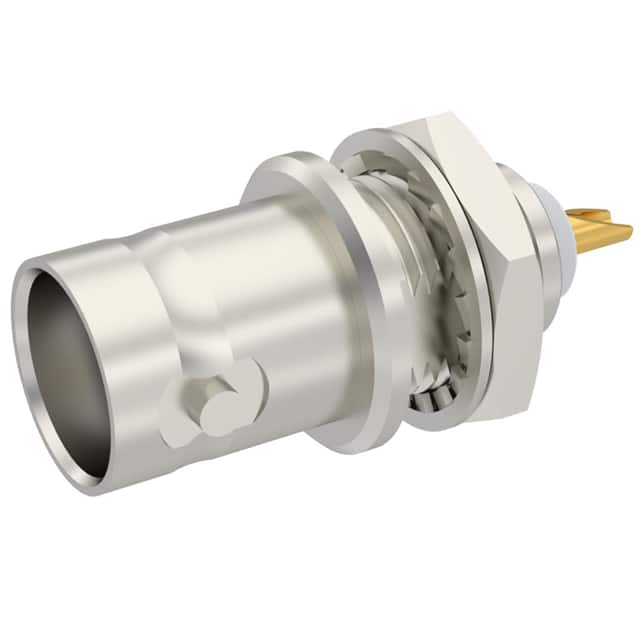

The Radiall R141557000 is a BNC female jack coaxial connector designed for 50 Ohm systems with a maximum operating frequency of 4 GHz. The connector uses a bayonet lock fastening mechanism for quick and secure connections.
This panel mount connector features a bulkhead rear side nut mounting feature, making it suitable for through-hole panel installations. The center contact is made of beryllium copper, and both the contact and shield are terminated via solder connections using a solder cup design.
The housing has a silver color finish. The connector is a single-port, 1-port design. It is classified as RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $8.19 | $8.19 |
| 10+ | $6.96 | $6.96 |
| 25+ | $6.52 | $6.52 |
| 50+ | $6.21 | $6.21 |
| 100+ | $5.91 | $5.91 |
| 300+ | $5.47 | $5.47 |
| 500+ | $5.28 | $5.28 |
| 1,000+ | $5.03 | $5.03 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a BNC connector with a jack, female socket configuration.
The impedance is 50 Ohms.
The maximum frequency is 4 GHz.
It is panel mounted with a bulkhead rear side nut.
It uses solder cup for contact termination and solder for shield termination.
The fastening type is bayonet lock.
