R141605000
Radiall
Radiall R141605000 is a BNC bulkhead jack receptacle with 50 Ohm impedance and 4 GHz max frequency. It features panel mount, bayonet lock, and solder cup termination.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Features | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Termination Style |

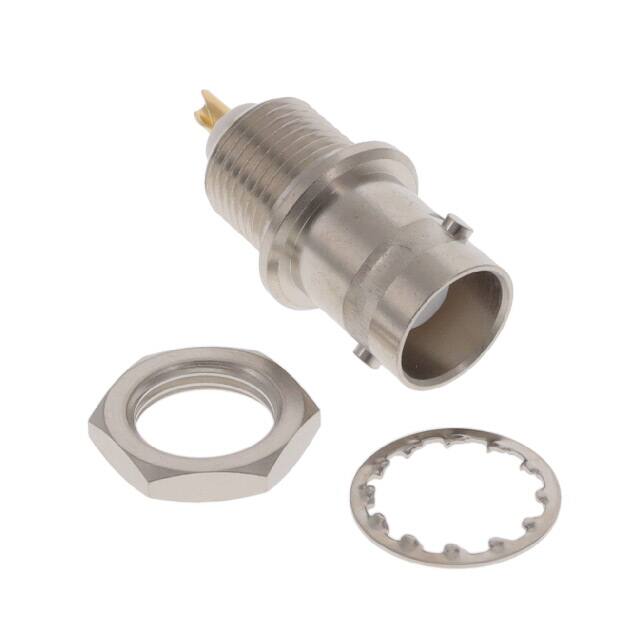

The R141554000 is a BNC coaxial connector from Radiall, featuring a jack female socket design. It is engineered for 50 Ohm impedance systems and supports frequencies up to 4 GHz, making it suitable for RF applications.
The connector offers a panel mount with bulkhead rear side nut mounting feature, ensuring secure installation in enclosures. Connection is made via a bayonet lock fastening mechanism, and terminations are solder cup for the contact and solder for the shield.
The center contact is constructed from beryllium copper, providing reliable electrical performance. The housing is finished in silver and includes extended insulation for enhanced signal integrity. This connector is designed for use in coaxial cable assemblies requiring a durable, high-frequency interface.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.53 | $9.53 |
| 10+ | $8.10 | $8.10 |
| 25+ | $7.59 | $7.59 |
| 50+ | $7.23 | $7.23 |
| 100+ | $6.88 | $6.88 |
| 300+ | $6.37 | $6.37 |
| 500+ | $6.15 | $6.15 |
| 1,000+ | $5.85 | $5.85 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 Ohm.
4 GHz.
BNC jack, female socket.
Panel mount, bulkhead with rear side nut.
Solder cup for the contact and solder for the shield.
Beryllium copper.
Bayonet lock.
