| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
95 pcs
|
95 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination |

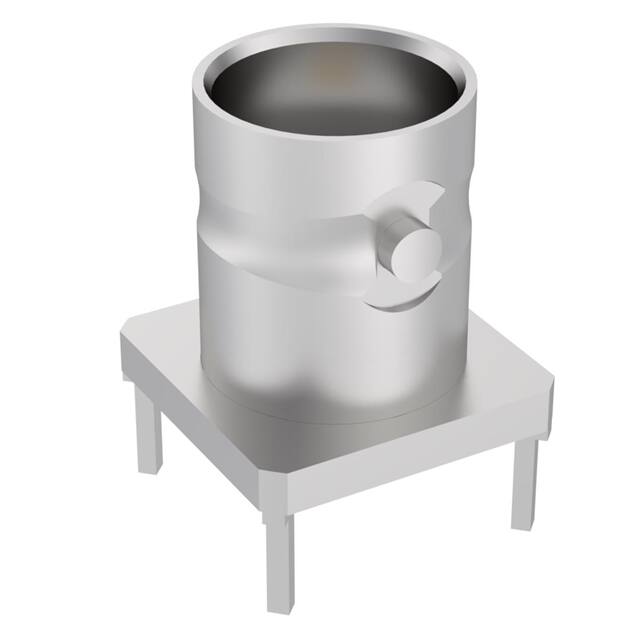

The Radiall R141426161 is a BNC style coaxial connector designed for RF applications. It features a female socket contact and a 50 Ohm impedance, with a maximum operating frequency of 1.5 GHz. The connector uses a bayonet lock fastening mechanism for secure mating.
This through hole mount connector has solder terminations for both the center contact and the shield. The center contact is made of brass. It is a single port jack configuration suitable for PCB mounting.
This connector is part of Radiall's coaxial connector family and is commonly used in telecommunications, test equipment, and other RF systems requiring a reliable 50 Ohm BNC interface.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.34 | $6.34 |
| 10+ | $5.39 | $5.39 |
| 25+ | $5.05 | $5.05 |
| 50+ | $4.81 | $4.81 |
| 100+ | $4.58 | $4.58 |
| 300+ | $4.24 | $4.24 |
| 500+ | $4.09 | $4.09 |
| 1,000+ | $3.89 | $3.89 |
| 2,500+ | $3.65 | $3.65 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The impedance is 50 Ohm.
The maximum frequency is 1.5 GHz.
It uses a through hole mounting type.
It is a BNC style jack with a female socket.
Both the contact and shield are terminated by solder.
