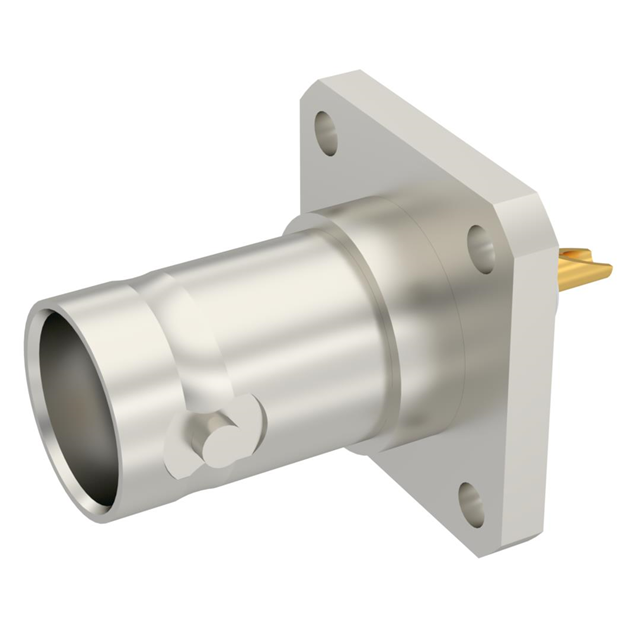

R141407000W Radiall R141407000W is a 50 Ohm BNC female socket jack connector for panel mount with flange, featuring solder cup termination and a bayonet lock.
Mfr Part #:

R141407000W

Available from 2 distributors
Mfr Name: Radiall
Radiall
Radiall R141407000W is a 50 Ohm BNC female socket jack connector for panel mount with flange, featuring solder cup termination and a bayonet lock.
✓ Total Stock: 123 pcs
$ Price Range: $10.35

R141407000W Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
119 pcs
On Request
119 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R141407000W Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Center Contact Material
Connector Style
Connector Type
Contact Termination
Fastening Type
Features
Frequency
Housing Color
Impedance
Mounting Feature
Mounting Type
Number of Ports
Shield Termination
Termination Style
View Similar Products (0)

R141407000W Description

Short technical summary and product information.

The Radiall R141407000W is a BNC-style coaxial connector designed as a panel mount jack with a female socket contact. It offers a characteristic impedance of 50 Ohms and supports frequencies up to 4 GHz, making it suitable for RF applications requiring reliable signal integrity.



This connector features a square flange mounting for secure panel attachment and uses a bayonet lock fastening mechanism for quick and stable mating. The contact termination is a solder cup, and the shield termination is also solder, ensuring robust electrical connections. The center contact is made of beryllium copper for good conductivity and durability, and the housing is finished in silver. An extended insulation feature is included.



The connector is designed for single-port use and is classified under RoHS3, REACH unaffected, and MSL 1 (unlimited) compliance, though these compliance statuses are unverified. It is suitable for use in RF systems, test equipment, and communication devices where a 50 Ohm BNC interface is required.

R141407000W Quick Information

Product Type: Coaxial Connector (RF) Assembly
Canonical Name: BNC, 50 Ohm, Panel Mount Jack Connector, Female Socket, Solder Cup
Subcategory: Jack, Female Socket

R141407000W Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R141407000W Estimated Pricing

Qty Low High
50+ $10.35 $10.35

Estimated market price range - modelled values for guidance only, not live distributor offers.

R141407000W Features

  • BNC connector with 50 Ohm impedance.
  • Operates up to 4 GHz frequency.
  • Panel mount with flange for secure mounting.
  • Solder cup contact and shield termination.
  • Extended insulation for added protection.

R141407000W Applications

  • Ideal for RF test and measurement setups.
  • Used in telecommunications equipment.
  • Suitable for broadcast and video systems.
  • Applicable in instrumentation and control.
  • Perfect for custom cable assembly designs.

R141407000W FAQs

5 frequently asked questions generated from this part’s specifications.
What is the impedance of this BNC connector?

The impedance is 50 Ohm.

What is the maximum frequency this connector supports?

The maximum frequency is 4 GHz.

What mounting style does this connector use?

This connector uses panel mount with a flange.

What type of fastening does it have?

It uses a bayonet lock fastening type.

How are the contacts terminated?

The contact termination is solder cup and shield termination is solder.

R141407000W Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
R141410000W
R141410000W
Radiall
The R141410000W is a 50 Ohm BNC jack coaxial connector assembly from Radiall. It features a panel mount flange, solder cup contact termination, and bayonet lock fastening.
View Part
