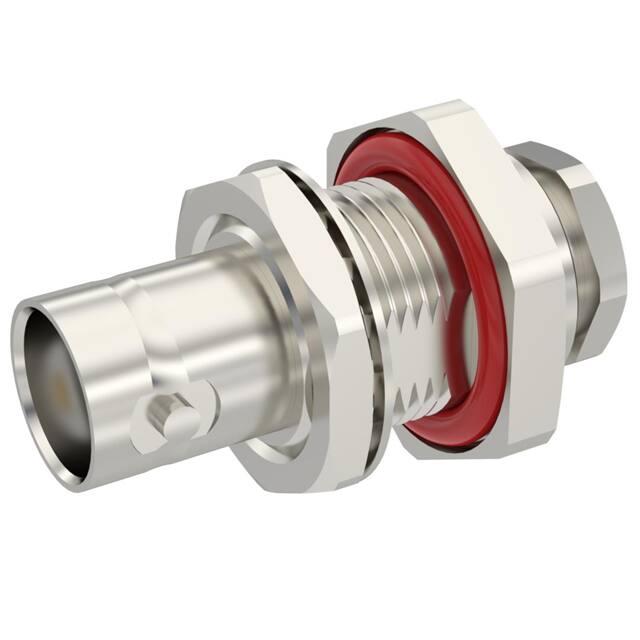

R141324000 Radiall R141324000 is a BNC straight bulkhead jack with female socket contact, 50 Ohm impedance, and 4 GHz frequency rating. Panel mounted with bayonet lock fastening.
Mfr Part #:

R141324000

Available from 2 distributors
Mfr Name: Radiall
Radiall
Radiall R141324000 is a BNC straight bulkhead jack with female socket contact, 50 Ohm impedance, and 4 GHz frequency rating. Panel mounted with bayonet lock fastening.
✓ Total Stock: 53 pcs
$ Price Range: $17.16

R141324000 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Chanetech ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R141324000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Group
Center Contact Material
Connector Style
Connector Type
Contact Termination
Fastening Type
Frequency
Housing Color
Impedance
Mounting Feature
Mounting Type
Number of Ports
Shield Termination
View Similar Products (0)

R141324000 Description

Short technical summary and product information.

The Radiall R141324000 is a BNC straight bulkhead jack connector designed for reliable RF interconnections. It features a female socket contact made of beryllium copper and a silver-colored housing. The connector offers 50 Ohm impedance and supports frequencies up to 4 GHz.



This connector uses a panel mount with bulkhead front side nut mounting feature and bayonet lock fastening for secure mating. Contact termination is solder type, and shield termination is clamp style. It is compatible with cable groups RG-174, 179, 316, and RD-316.



The single-port design is suitable for applications requiring a durable and consistent RF connection. The connector is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited).

R141324000 Quick Information

Product Type: Coaxial Connector (RF) Assembly
Canonical Name: BNC Straight Bulkhead Jack, Female Socket, 50 Ohm, Panel Mount
Subcategory: BNC Connector

R141324000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R141324000 Estimated Pricing

Qty Low High
100+ $17.16 $17.16

Estimated market price range - modelled values for guidance only, not live distributor offers.

R141324000 Features

  • BNC straight bulkhead jack connector.
  • 50 Ohm impedance, 4 GHz frequency rating.
  • Panel mount with bayonet lock fastening.
  • Solder contact and clamp shield termination.
  • Compatible with RG-174, 179, 316, RD-316 cables.

R141324000 Applications

  • Used in RF signal transmission systems.
  • Ideal for telecommunications equipment.
  • Suitable for test and measurement setups.
  • Applied in broadcast and video distribution.

R141324000 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the impedance of the R141324000?

50 Ohm.

What is the maximum frequency rating?

4 GHz.

What type of connector is the R141324000?

BNC jack, female socket.

How is the R141324000 mounted?

Panel mount with bulkhead front side nut.

What cable groups are compatible?

RG-174, 179, 316, RD-316.

What is the fastening type?

Bayonet lock.

R141324000 Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
R141324000W
R141324000W
Radiall
Radiall R141324000W is a BNC straight bulkhead jack connector with a female socket, 50 Ohm impedance, and 4 GHz frequency rating. It features panel mount with front side nut and bayonet lock fastening.
