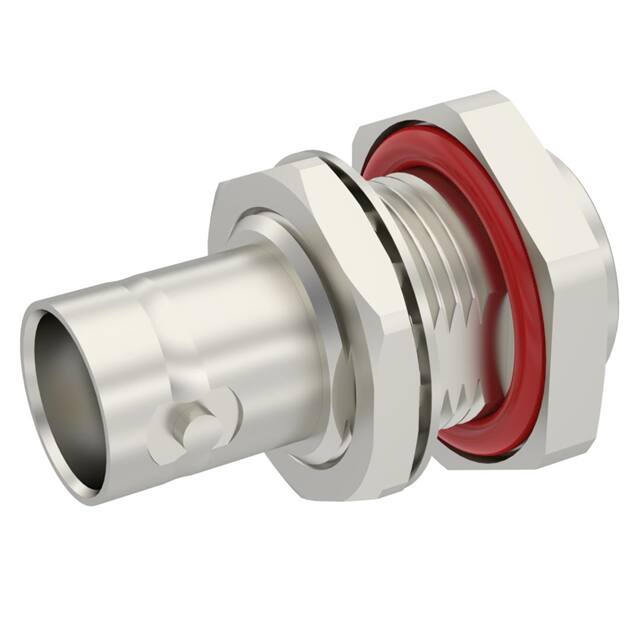

R141323000 Radiall R141323000 is a BNC straight bulkhead jack, 50 Ohm impedance, rated to 4 GHz, with panel mount and IP67 sealing.
Mfr Part #:

R141323000

Available from 1 distributors
Mfr Name: Radiall
Radiall
Radiall R141323000 is a BNC straight bulkhead jack, 50 Ohm impedance, rated to 4 GHz, with panel mount and IP67 sealing.
✓ Total Stock: 39 pcs
$ Price Range: $16.06

R141323000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
39 pcs
On Request
39 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R141323000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Body Material
Cable Group
Center Contact Material
Center Contact Plating
Connector Style
Connector Type
Contact Termination
Dielectric Withstanding Voltage
Fastening Type
Frequency
Housing Color
Impedance
Ingress Protection
Insertion Loss
Insulation Resistance
Insulator Material
Mounting Feature
Mounting Type
Number of Ports
Operating Temperature
Shield Termination
VSWR
Voltage Rating
View Similar Products (0)

R141323000 Description

Short technical summary and product information.

The Radiall R141323000 is a BNC straight bulkhead jack connector designed for 50 Ohm systems with a frequency range up to 4 GHz. It features a panel mount with bulkhead front side nut fastening and a bayonet lock coupling mechanism. The contact termination is solder type, and the shield termination uses a clamp style, compatible with cable groups RG-178 and RG-196.



Electrical characteristics include a maximum VSWR of 1.59 + 0.000 x F(GHz), maximum insertion loss of .115 √F(GHz) dB, and a voltage rating of 335 Veff. The connector is rated for operating temperatures from -65°C to +165°C and offers IP67 ingress protection on the panel side.



The body is made of brass with nickel plating, the center contact is beryllium copper with gold over nickel plating, and the insulator is PTFE. The connector is RoHS3 compliant and REACH unaffected.

R141323000 Quick Information

Product Type: Coaxial Connector (RF) Assembly
Series: BNC
Canonical Name: Radiall R141323000 BNC Straight Bulkhead Jack, 50 Ohm, Panel Mount, Solder/Clamp Termination
Subcategory: Straight Bulkhead Jack

R141323000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R141323000 Estimated Pricing

Qty Low High
100+ $16.06 $16.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

R141323000 Features

  • 50 Ohm impedance, 4 GHz max frequency.
  • Panel mount with IP67 bulkhead seal.
  • Solder contact and clamp shield termination.
  • Compatible with RG-178 and RG-196 cables.
  • Bayonet lock fastening for secure mating.

R141323000 Applications

  • Used in RF communication and test equipment.
  • Suitable for panel-mount bulkhead applications.
  • Ideal for 50 Ohm coaxial cable assemblies.
  • Works in environments requiring IP67 sealing.

R141323000 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the impedance of the Radiall R141323000?

The impedance is 50 Ohm.

What is the maximum frequency rating?

The maximum frequency is 4 GHz.

What is the mounting type?

Panel mount with bulkhead front side nut.

What is the voltage rating?

The maximum voltage rating is 335 Veff.

What is the operating temperature range?

-65°C to +165°C.

What is the ingress protection rating?

IP67 on the panel side.

What cable types are compatible?

RG-178 and RG-196.
