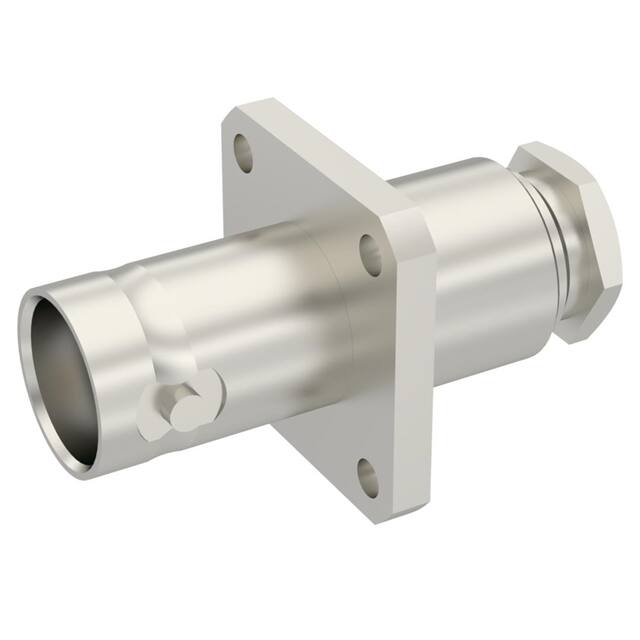

R141257000 Radiall R141257000 is a BNC straight square flange jack connector with 50 Ohm impedance and 4 GHz max frequency. It features a clamp shield termination, solder contact termination, and panel mount with flange.
Mfr Part #:

R141257000

Available from 1 distributors
Mfr Name: Radiall
Radiall
Radiall R141257000 is a BNC straight square flange jack connector with 50 Ohm impedance and 4 GHz max frequency. It features a clamp shield termination, solder contact termination, and panel mount with flange.
✓ Total Stock: 5 pcs
$ Price Range: $21.18

R141257000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R141257000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Body Material
Cable Group
Center Contact Material
Center Contact Plating
Connector Style
Connector Type
Contact Termination
Fastening Type
Frequency
Housing Color
Impedance
Insertion Loss (Max)
Insulator Material
Mounting Feature
Mounting Type
Number of Ports
Operating Temperature
Shield Termination
Weight
View Similar Products (0)

R141257000 Description

Short technical summary and product information.

The Radiall R141257000 is a BNC straight square flange jack connector designed for coaxial cable assemblies. It features a female socket contact, 50 Ohm characteristic impedance, and operates from DC to 4 GHz with a maximum VSWR of 1.2:1. The connector is constructed with a brass body plated with nickel, a beryllium copper center contact with gold over nickel plating, and a PTFE insulator. The clamp-type shield termination and solder contact termination provide reliable cable attachment for RG-58, RG-141, and KX-15 cables. The panel mount with flange allows secure installation. The connector is rated for 500 Vrms maximum voltage and 1500 Vrms dielectric withstanding voltage. It is packaged in standard quantities of 100 pieces. The operating temperature range is -65°C to +165°C.

R141257000 Quick Information

Product Type: Coaxial Connector (RF) Assembly
Series: S Series
Canonical Name: BNC Straight Square Flange Jack, Female Socket, 50 Ohm, Clamp/Solder, Panel Mount
Subcategory: BNC Jack Connector

R141257000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R141257000 Estimated Pricing

Qty Low High
100+ $21.18 $21.18

Estimated market price range - modelled values for guidance only, not live distributor offers.

R141257000 Features

  • BNC straight square flange jack connector.
  • 50 Ohm impedance, 4 GHz frequency.
  • Clamp shield termination, solder contact.
  • Panel mount with flange.
  • 500 Vrms voltage rating.

R141257000 Applications

  • Ideal for RF coaxial cable assemblies.
  • Used in telecommunications equipment.
  • Suitable for test and measurement.
  • Compatible with RG-58 and RG-141 cables.

R141257000 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the voltage rating of the Radiall R141257000?

The maximum voltage rating is 500 Vrms.

What is the mounting type for this connector?

Panel mount with flange.

What is the impedance of the R141257000?

50 Ohm.

What is the maximum operating frequency?

4 GHz.

Which cables are recommended for use with this connector?

RG-141, RG-58, and KX-15.

What is the operating temperature range?

-65°C to +165°C.
