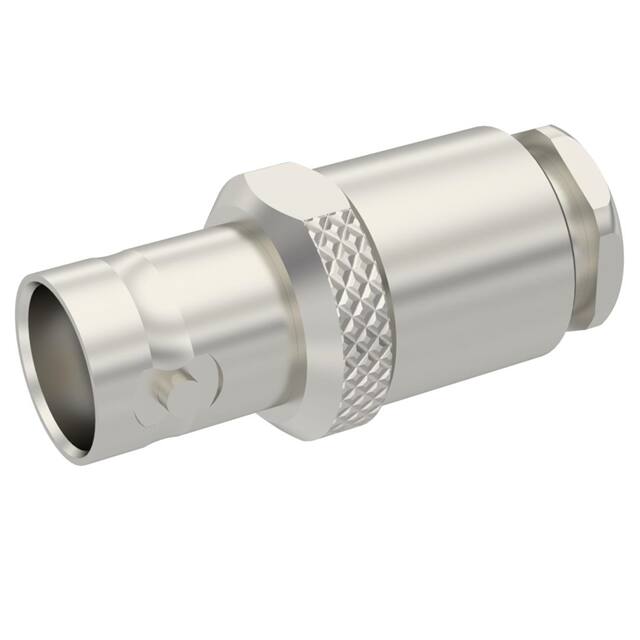

R141207000 Radiall R141207000 is a BNC jack, female socket coaxial connector with 50 Ohm impedance, rated for 4 GHz. It features free hanging mounting with solder contact and clamp shield termination.
Mfr Part #:

R141207000

Available from 1 distributors
Mfr Name: Radiall
Radiall
Radiall R141207000 is a BNC jack, female socket coaxial connector with 50 Ohm impedance, rated for 4 GHz. It features free hanging mounting with solder contact and clamp shield termination.
✓ Total Stock: 9 pcs
$ Price Range: $15.80

R141207000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
9 pcs
On Request
9 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R141207000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Group
Center Contact Material
Connector Style
Connector Type
Contact Termination
Fastening Type
Frequency
Housing Color
Impedance
Mounting Type
Number of Ports
Shield Termination
View Similar Products (0)

R141207000 Description

Short technical summary and product information.

The Radiall R141207000 is a BNC straight jack clamp type coaxial connector designed for use with RG-58, 141, 142, 223, and 400 cables. It offers a 50 Ohm impedance and supports frequencies up to 4 GHz. The connector features a bayonet lock fastening for secure connections. The center contact is made of beryllium copper, and the housing is silver. Termination is solder for the contact and clamp for the shield. This connector is suitable for RF applications requiring reliable performance. It is RoHS3 compliant and has an MSL of 1 (Unlimited).

R141207000 Quick Information

Product Type: Coaxial Connector (RF) Assembly
Canonical Name: BNC Jack, Female Socket, 50 Ohm, Free Hanging, Solder/Clamp Termination
Subcategory: BNC Connector

R141207000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R141207000 Estimated Pricing

Qty Low High
100+ $15.80 $15.80

Estimated market price range - modelled values for guidance only, not live distributor offers.

R141207000 Features

  • BNC jack, female socket connector.
  • 50 Ohm impedance rating.
  • 4 GHz maximum frequency.
  • Free hanging in-line mounting.
  • Solder contact and clamp shield termination.

R141207000 Applications

  • Used in RF test equipment connections.
  • Ideal for telecommunications infrastructure.
  • Suitable for video surveillance systems.
  • Common in broadcast and studio applications.

R141207000 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the impedance of the Radiall R141207000?

50 Ohms.

What is the maximum frequency?

4 GHz.

What type of connector is it?

BNC jack, female socket.

How is it mounted?

Free hanging (in-line).

What is the fastening type?

Bayonet lock.

What is the contact termination?

Solder.

What is the shield termination?

Clamp.
