| Category | |
| Manufacturer Name | |
| Cable Group | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination |

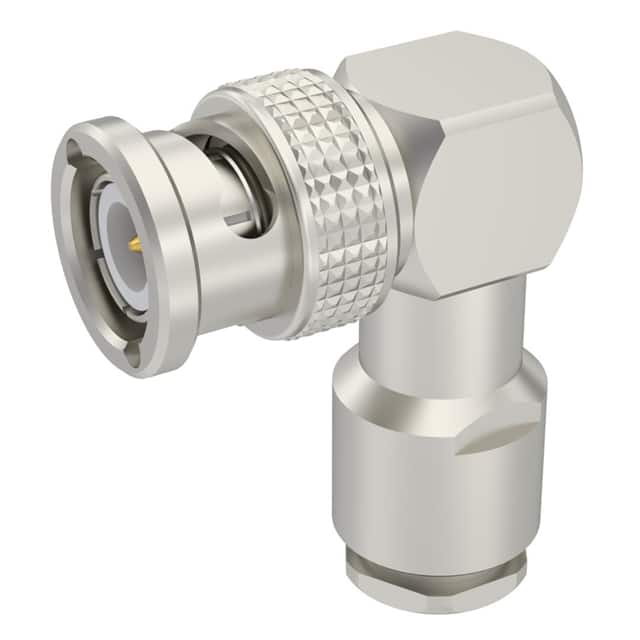

This is a BNC connector from Radiall, part number R141156000. It is a plug with male pin contact, right angle orientation, and free hanging in-line mounting. The connector is designed for use with cable groups RG-58, 141, 142, 223, and 400.
Electrical specifications include 50 Ohm characteristic impedance and a maximum frequency of 4 GHz. The connector uses a bayonet lock fastening type for secure connection. Contact termination is crimp, and shield termination is clamp.
The center contact is made of beryllium copper and brass. The housing is silver in color. The connector has a single port. It is RoHS3 compliant, REACH unaffected, and has MSL 1 unlimited.
This connector is suitable for RF applications requiring reliable coaxial connections in telecommunications, test equipment, and networking. The right angle design allows for space-saving installations.
| Qty | Low | High |
|---|---|---|
| 1+ | $26.26 | $26.26 |
| 10+ | $22.32 | $22.32 |
| 25+ | $20.92 | $20.92 |
| 50+ | $19.92 | $19.92 |
| 100+ | $18.97 | $18.97 |
| 250+ | $17.78 | $17.78 |
| 500+ | $16.94 | $16.94 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Plug, Male Pin, BNC style.
50 Ohm.
4 GHz.
Free Hanging (In-Line), Right Angle.
RG-58, 141, 142, 223, 400.
Bayonet Lock.
Contact termination is crimp, shield termination is clamp.
