| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Group | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination |

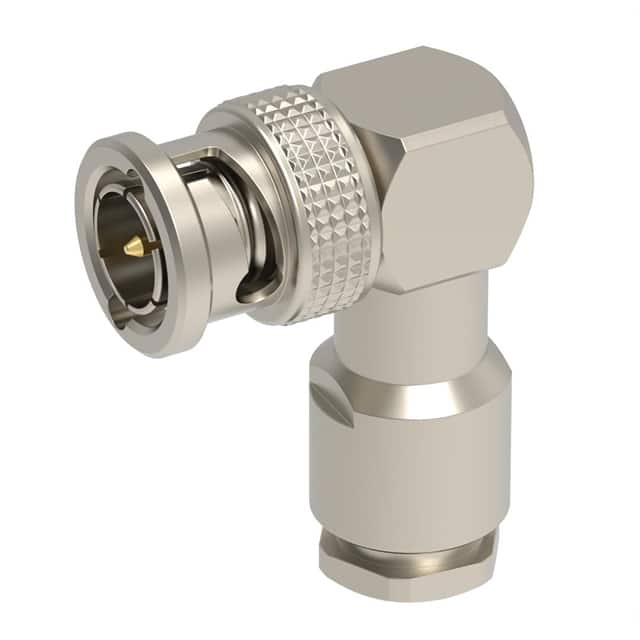

The Radiall R141154000 is a BNC connector plug designed for coaxial cable termination. It features a male pin contact and right angle orientation, allowing for compact installations in tight spaces. The connector uses a bayonet lock fastening mechanism for secure, quick connections.
Electrically, the connector offers 50 Ohm impedance and supports frequencies up to 4 GHz, making it suitable for RF applications. The contact termination is crimp, and the shield termination is clamp, ensuring reliable electrical and mechanical connections. The center contact is made of beryllium copper and brass, providing good conductivity and durability.
This connector is designed for free hanging (in-line) mounting and is compatible with cable groups RG-174, RG-179, and RG-316. The housing is silver in color. It is a single-port connector.
| Qty | Low | High |
|---|---|---|
| 1+ | $22.93 | $22.93 |
| 10+ | $19.49 | $19.49 |
| 25+ | $18.27 | $18.27 |
| 50+ | $17.40 | $17.40 |
| 100+ | $16.57 | $16.57 |
| 300+ | $15.33 | $15.33 |
| 500+ | $14.79 | $14.79 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Free hanging (in-line) and right angle.
50 Ohm.
4 GHz.
RG-174, RG-179, and RG-316.
BNC plug, male pin.
Bayonet lock.
Crimp.
