| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
80 pcs
|
80 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Group | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination |

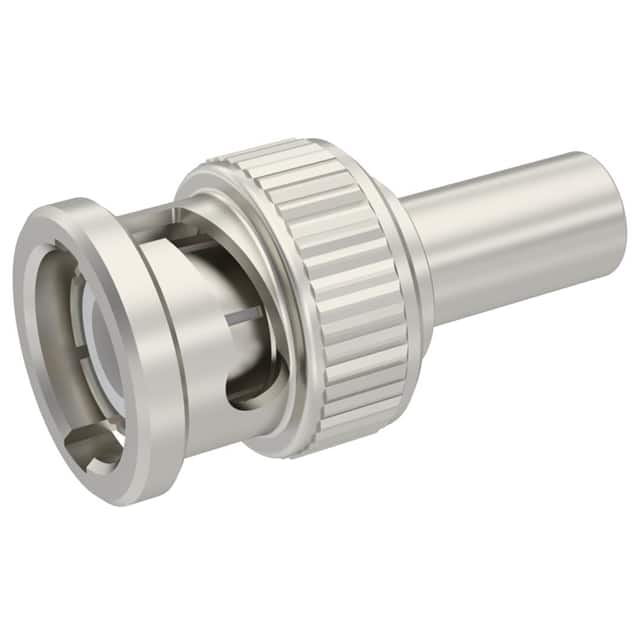

The Radiall R141082161 is a BNC connector plug designed for coaxial cable applications. It features a male pin contact and is terminated via crimp for both the center contact and shield, ensuring reliable electrical and mechanical connections. The connector has a characteristic impedance of 50 Ohm and supports a maximum operating frequency of 1.5 GHz, making it suitable for RF signal transmission in various systems.
This connector uses a bayonet lock fastening mechanism for quick and secure coupling. It is a free hanging (in-line) mounting type, providing flexibility for cable assembly. The housing is silver-colored, and the center contact is made of brass for good conductivity and durability. The connector is compatible with RG-58 and RG-141 coaxial cable groups.
Typical applications include telecommunications equipment, video surveillance systems, and RF test and measurement setups where reliable 50 Ohm connections are required. The crimp termination simplifies field installation and ensures consistent performance across the cable assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.99 | $6.99 |
| 10+ | $5.94 | $5.94 |
| 25+ | $5.57 | $5.57 |
| 50+ | $5.30 | $5.30 |
| 100+ | $5.05 | $5.05 |
| 300+ | $4.67 | $4.67 |
| 500+ | $4.51 | $4.51 |
| 1,000+ | $4.29 | $4.29 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The impedance is 50 Ohm.
The maximum operating frequency is 1.5 GHz.
It is a BNC plug with a male pin contact.
Both the center contact and shield are terminated using crimp.
It is a free hanging (in-line) mounting style.
It uses a bayonet lock fastening mechanism.
It is compatible with RG-58 and RG-141 coaxial cables.
