| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13 pcs
|
13 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Body Material | |
| Cable Group | |
| Center Contact Material | |
| Center Contact Plating | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Insertion Loss | |
| Insulation Resistance | |
| Insulator Material | |
| Mounting Type | |
| Number of Ports | |
| Operating Temperature Range | |
| SVHC Present | |
| Shield Termination | |
| VSWR | |
| Voltage Rating | |
| Weight |

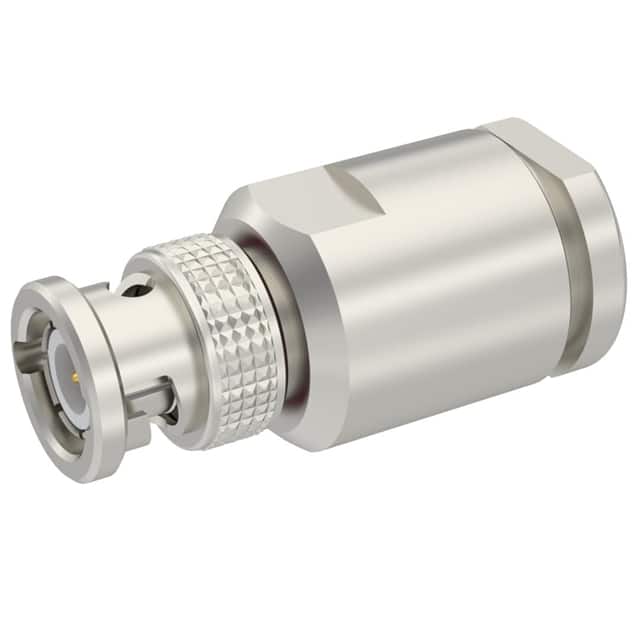

The Radiall R141018000 is a BNC straight plug, clamp-type coaxial connector designed for use with RG-213, RG-214, RG-225, and RG-393 cables. It features a 50 Ohm impedance and operates up to 4 GHz with a maximum VSWR of 1.1 and insertion loss of 0.115√F(GHz) dB. The connector is rated for 500 Vrms voltage and 1500 Vrms dielectric withstanding voltage, with insulation resistance of 5000 MOhm minimum.
The connector is constructed with a brass body and center contact, nickel-plated body, and gold-plated center contact (0.5 µm over 2 µm nickel). The insulator is PTFE and the gasket is silicone rubber. It uses a bayonet lock fastening type and clamp shield termination. The clamp nut torque is 450 N.cm with a 16 mm A/F nut.
Mechanically, it offers a mating life of 500 cycles minimum, center contact retention of 27 N at both ends, and cable retention pull-off force of 350 N minimum. The operating temperature range is -65°C to +165°C. It is a free-hanging, in-line mounting connector with solder contact termination. Standard packaging is 100 pieces per unit.
This connector is suitable for applications requiring reliable RF connections in telecommunications, test equipment, and industrial systems.
| Qty | Low | High |
|---|---|---|
| 100+ | $21.68 | $21.68 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 Ohms.
4 GHz.
500 Vrms maximum.
Free hanging (in-line).
-65°C to +165°C.
RG-213, RG-214, RG-225, RG-393.
500 cycles minimum.
