| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Group | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination |

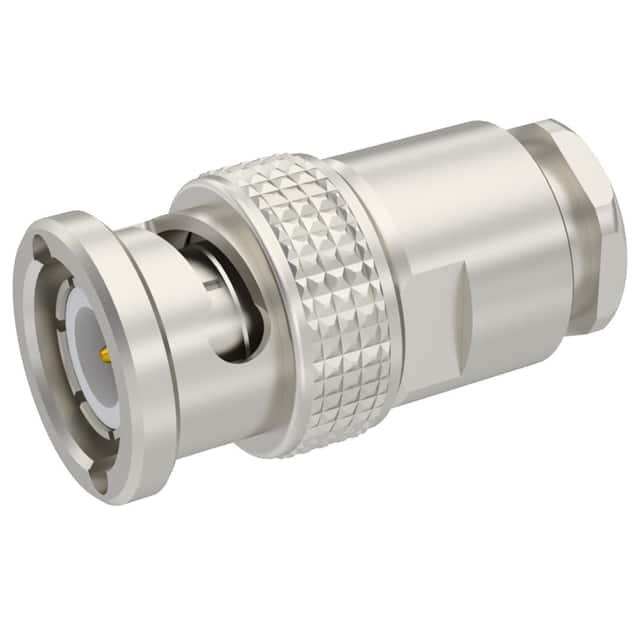

The Radiall R141008000 is a BNC straight plug connector designed for coaxial cable termination. It features a male pin contact and uses a bayonet lock fastening mechanism for secure connections. The connector is terminated using solder for the center contact and a clamp for the shield, ensuring reliable electrical and mechanical performance.
This connector is rated for 50 Ohm impedance and operates up to 4 GHz, making it suitable for RF applications. It is designed for free hanging (in-line) mounting and accommodates cable groups RG-58, 141, 142, 223, and 400. The center contact is made of brass, and the housing has a silver finish.
Applications include RF signal transmission, test equipment, telecommunications, and networking where reliable coaxial connections are required. The clamping shield termination provides strain relief and robust cable retention.
| Qty | Low | High |
|---|---|---|
| 100+ | $8.61 | $8.61 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 Ohm.
Up to 4 GHz.
BNC straight plug with male pin.
RG-58, 141, 142, 223, 400.
Solder for center contact, clamp for shield.
Free hanging (in-line).
Bayonet lock.
