| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Group | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination |

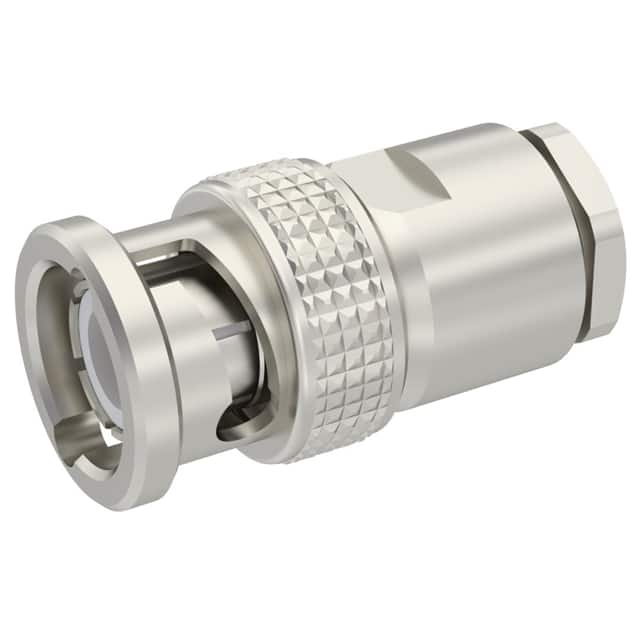

The Radiall R141004000 is a BNC straight plug connector designed for coaxial cable groups RG-174, RG-179, RG-316, and RD-316. It is a male pin (plug) type with a bayonet lock fastening mechanism for quick and secure connections. The connector features a clamp-style shield termination and solder contact termination.
Electrical specifications include a characteristic impedance of 50 Ohms and a maximum operating frequency of 4 GHz. The connector is free hanging (in-line) mounted and constructed with a silver-plated housing and brass center contact. It supports a single port configuration.
The part is compliant with RoHS3, REACH unaffected, and has an MSL rating of 1 (unlimited). It is suitable for RF signal transmission in test and measurement, telecommunications, and broadcast applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $20.44 | $20.44 |
| 10+ | $17.37 | $17.37 |
| 25+ | $16.28 | $16.28 |
| 50+ | $15.51 | $15.51 |
| 100+ | $14.77 | $14.77 |
| 300+ | $13.67 | $13.67 |
| 500+ | $13.18 | $13.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Free hanging (in-line) mounting.
BNC.
50 Ohm.
DC to 4 GHz.
RG-174, RG-179, RG-316, and RD-316.
Bayonet lock.
Solder.
