R141003000

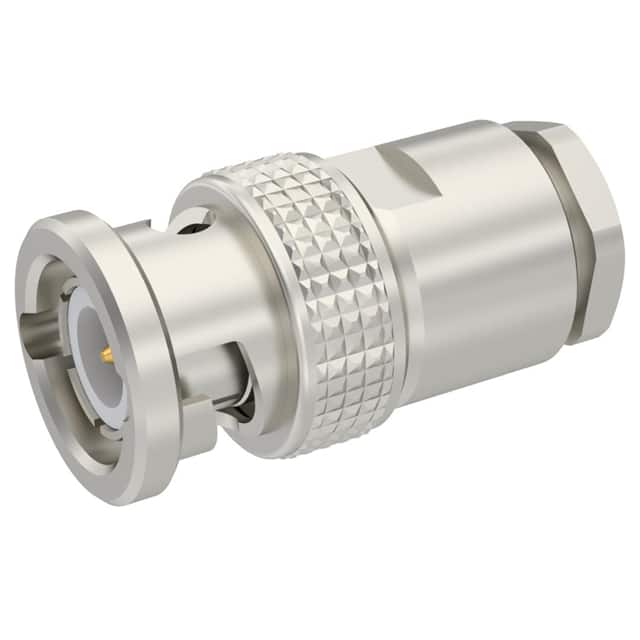

The Radiall R141003000 is a BNC straight plug connector with a male pin contact, designed for 50 Ohm impedance systems. It features a clamp type cable termination and a bayonet lock coupling mechanism for quick and secure mating. The connector is constructed with a brass body and nickel plating, a brass center contact with gold over nickel plating, a PTFE insulator, and a silicone rubber gasket. It is rated for a maximum frequency of 4 GHz with a VSWR of 1.3 + 0.0500 x F(GHz) max, insertion loss of 0.115 sqrt(F(GHz)) dB max, and RF leakage of -(57 - F(GHz)) dB max. The voltage rating is 500 Veff max, dielectric withstanding voltage is 1500 Veff min, and insulation resistance is 5000 MOhm min. The connector is free hanging (in-line) and supports cable groups RG-178 and RG-196. It has a mating life of 500 cycles minimum, an operating temperature range of -65 to +165°C, and weighs 19.15 g. The standard unit packaging is 100 pieces per batch.
