Mfr Part #:

R14-S-SP-22083-1

Mfr Name: Sensata

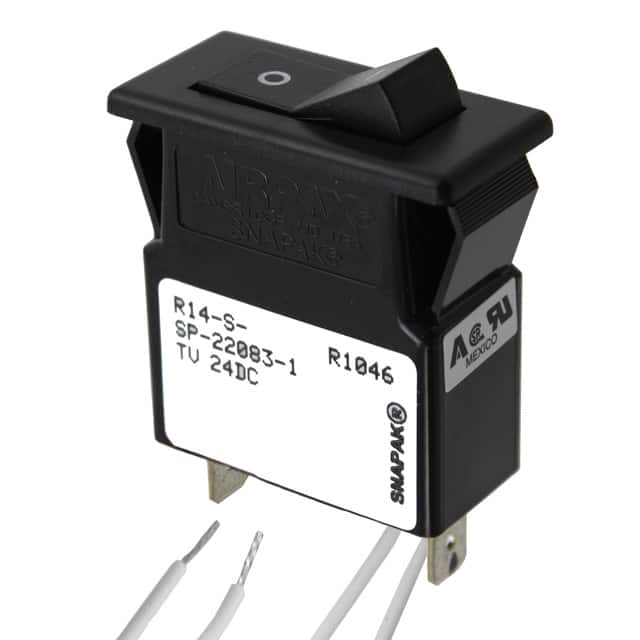

The Sensata R14-S-SP-22083-1 is a single-pole, magnetic hydraulic delay circuit breaker designed for panel mounting. It operates at 24VDC and features a rocker actuator.

Stock on Request

R14-S-SP-22083-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Circuit Breakers
Manufacturer Name	Sensata
Actuator Type	Rocker
Breaker Type	Magnetic (Hydraulic Delay)
Mounting Type	Panel Mount
Number of Poles	1
Voltage Rating	24 VDC

View Similar Products (0)

R14-S-SP-22083-1 Description

Short technical summary and product information.

This Sensata R14-S-SP-22083-1 is a single-pole circuit breaker utilizing a magnetic hydraulic delay mechanism for protection. It is rated for 24VDC operation and features a convenient rocker actuator for manual operation.

The breaker is designed for panel mounting, offering a secure and accessible installation in various systems. Its magnetic hydraulic delay type provides reliable overcurrent protection suitable for applications requiring specific delay characteristics.

Key specifications include a 24VDC voltage rating and a single pole configuration. The actuator type is a rocker, and the mounting type is panel mount. Environmental compliance includes RoHS3 compliance and MSL 1, though these statuses are unverified.

R14-S-SP-22083-1 Quick Information

Product Type: Circuit Breaker

Series: R14-S

Canonical Name: Sensata R14-S-SP-22083-1 Magnetic Hydraulic Delay Circuit Breaker

Subcategory: Magnetic (Hydraulic Delay)

R14-S-SP-22083-1 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Yes

R14-S-SP-22083-1 Features

Single-pole magnetic hydraulic circuit breaker.
Rated for 24VDC operation.
Rocker actuator for manual trip/reset.
Panel mount design.
Time-delay trip characteristic.

R14-S-SP-22083-1 Applications

Used in industrial control panels.
Suitable for automotive electrical systems.
Protects equipment in marine applications.
Ideal for power distribution units.

R14-S-SP-22083-1 FAQs

6 frequently asked questions generated from this part’s specifications.

What is the voltage rating of the R14-S-SP-22083-1 circuit breaker?

The voltage rating is 24 VDC.

What type of breaker is the R14-S-SP-22083-1?

It is a Magnetic (Hydraulic Delay) breaker.

How is the R14-S-SP-22083-1 mounted?

It is designed for Panel Mount.

What is the actuator type for this circuit breaker?

The actuator type is Rocker.

What is the RoHS status of this component?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the R14-S-SP-22083-1?

The Moisture Sensitivity Level is 1 Unlimited.
