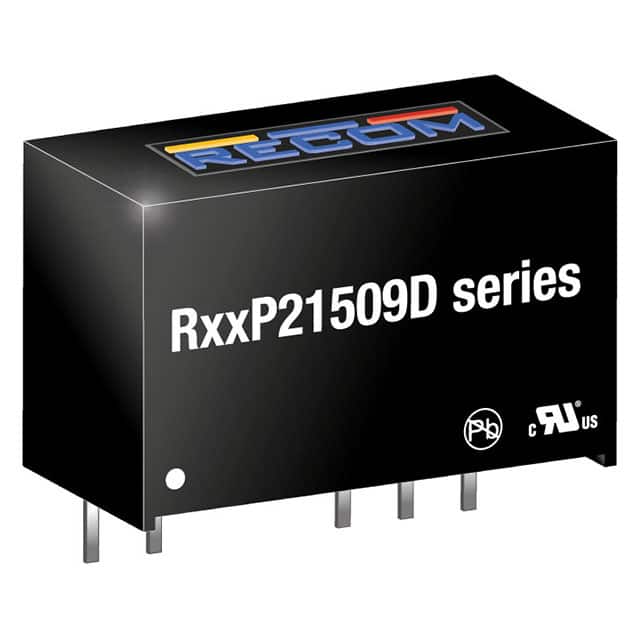

The R12P21509D is a 2W isolated DC/DC converter from Recom Power, part of the RxxP2xx series. It accepts a nominal 12V input (10.8V to 13.2V range) and provides dual outputs: +15V at 66mA and -9V at 111mA. The converter features a high isolation voltage of 6.4kV DC, making it suitable for applications requiring reinforced isolation, such as medical and industrial equipment.
Key electrical characteristics include a typical efficiency of 75% at full load, output accuracy of ±5%, and a switching frequency between 20 and 85 kHz. The module is designed for through-hole mounting in a 7-SIP (Single In-line Package) with dimensions 19.5 x 9.8 x 12.5 mm. It offers a very low isolation capacitance and high common-mode transient immunity of 65 kV/µs, enhancing reliability in noisy environments.
The converter is suitable for ITE (commercial) and medical applications, with certifications to UL/CSA60950-1, UL/CSA62368-1, and IEC/EN62368-1. It is RoHS3 and REACH compliant, and has an MSL of 1 (unlimited). The operating temperature range is -40°C to +85°C, allowing use in harsh conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $18.01 | $18.01 |
| 5+ | $17.34 | $17.34 |
| 10+ | $17.06 | $17.06 |
| 25+ | $16.69 | $16.69 |
| 50+ | $16.42 | $16.42 |
| 100+ | $16.15 | $16.15 |
| 250+ | $15.81 | $15.81 |
| 500+ | $15.55 | $15.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal input voltage is 12V DC with a range of 10.8V to 13.2V (±10%).
It is a through-hole 7-SIP module (7 pins) with dimensions 19.5 x 9.8 x 12.5 mm.
-40°C to +85°C.
The part is listed as RoHS3 compliant, but this is unverified. Please confirm with manufacturer.
6.4 kV DC.
Output 1: +15V at 66mA; Output 2: -9V at 111mA.
75% at nominal input and full load at +25°C ambient.
