| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitive Load (Max) | |
| Current | |
| Efficiency | |
| Height | |
| Input Voltage (Nominal) | |
| Input Voltage Range | |
| Isolation Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Leads | |
| Number of Outputs | |
| Operating Frequency | |
| Operating Temperature | |
| Output Accuracy | |
| Output Current (per output) | |
| Output Ripple and Noise | |
| Output Voltage - Nominal | |
| Power (Watts) | |
| Termination Style | |
| Transient Immunity | |
| Type | |
| Voltage | |
| Width |

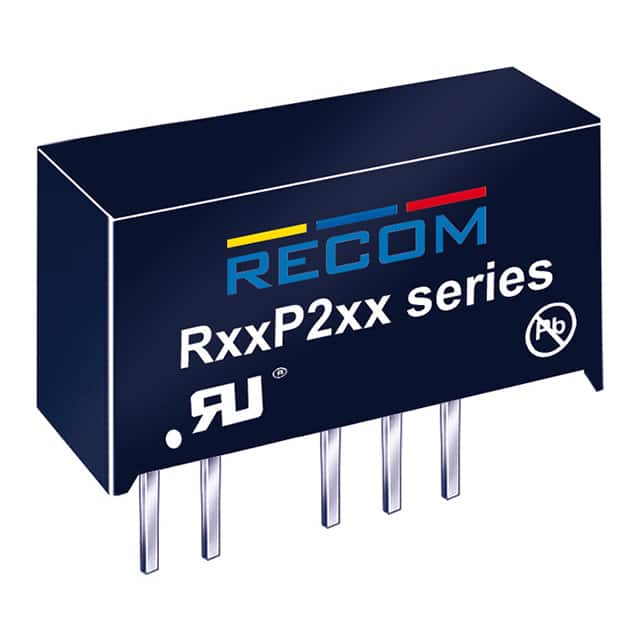

The R12P212D is a 2W isolated DC/DC converter from Recom Power, designed for applications requiring dual ±12V outputs. It features an isolated module topology with 6.4kVDC isolation, making it suitable for both commercial ITE and medical equipment. The converter operates from a nominal 12V input with a ±10% range (10.8V to 13.2V) and delivers 83mA per output with typical efficiency of 70-75%.
This converter is housed in a compact 7-SIP through-hole package measuring 19.7mm x 9.8mm x 12.5mm with 5 leads and PC pin termination. It offers a wide operating temperature range of -40°C to 85°C and requires no minimum load. The output ripple and noise is 200mVp-p (20MHz BW), and it can drive capacitive loads up to ±330µF.
The R12P212D includes features such as 65kV/µs transient immunity and optional continuous short circuit protection (suffix /P). It is compliant with RoHS3 and REACH, and certified to UL/CSA60950-1, UL/CSA62368-1, and IEC/EN62368-1. The converter is ideal for space-constrained designs requiring reliable isolated power.
| Qty | Low | High |
|---|---|---|
| 1+ | $17.42 | $17.42 |
| 5+ | $16.77 | $16.77 |
| 10+ | $16.50 | $16.50 |
| 25+ | $16.15 | $16.15 |
| 50+ | $15.89 | $15.89 |
| 100+ | $15.63 | $15.63 |
| 250+ | $15.29 | $15.29 |
| 500+ | $15.04 | $15.04 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Nominal 12V, range 10.8V to 13.2V (±10%).
It is a 7-SIP through-hole module with 5 leads and PC pin termination.
-40°C to 85°C.
Yes, it is RoHS3 compliant.
Dual ±12V outputs.
6.4kVDC.
70% to 75%.
