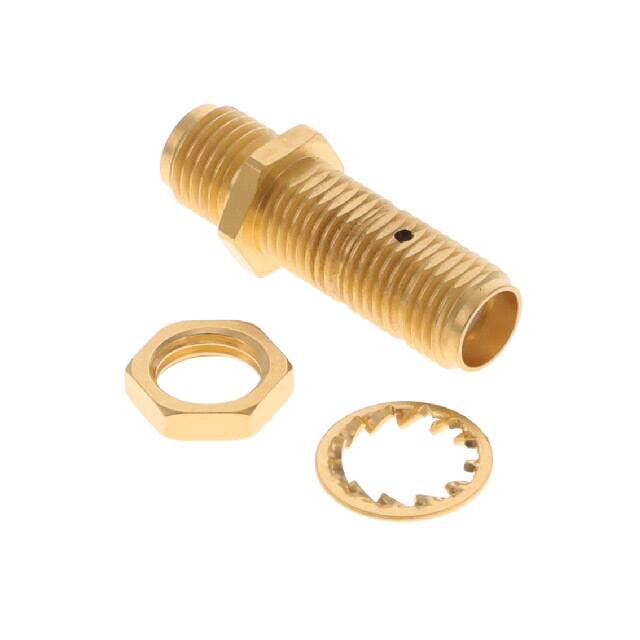

The Radiall R125720000 is a precision SMA female to female straight bulkhead adapter designed for RF interconnect applications. It offers a 50 Ω impedance and operates across a frequency range from DC to 18 GHz, making it suitable for high-frequency signal routing.
Electrical performance includes a maximum VSWR of 1.05 + 0.0050 × F(GHz) and a maximum insertion loss of 0.07√F(GHz) dB. The adapter is rated for a maximum voltage of 500 Veff and a dielectric withstanding voltage of 1000 Veff minimum, with insulation resistance of 5000 MΩ minimum.
Mechanically, the adapter features a stainless steel body with gold over nickel plating, beryllium copper center contacts with gold over nickel plating, and a PTFE insulator. It supports a minimum center contact retention force of 27 N, a minimum mating torque of 2.8 N·cm, and a panel nut torque of 150 N·cm. The mating life is rated for a minimum of 500 cycles. The adapter weighs 3.55 g nominal.
The R125720000 is a bulkhead mount adapter with threaded fastening on both ends, providing a secure connection in panel-mounted RF systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $43.65 | $43.65 |
| 10+ | $37.10 | $37.10 |
| 25+ | $34.78 | $34.78 |
| 50+ | $33.12 | $33.12 |
| 100+ | $31.54 | $31.54 |
| 300+ | $29.19 | $29.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The impedance is 50 Ω.
It operates from DC to 18 GHz.
The maximum voltage rating is 500 Veff.
The operating temperature range is -65°C to +165°C.
It is a panel mount with a bulkhead feature.
