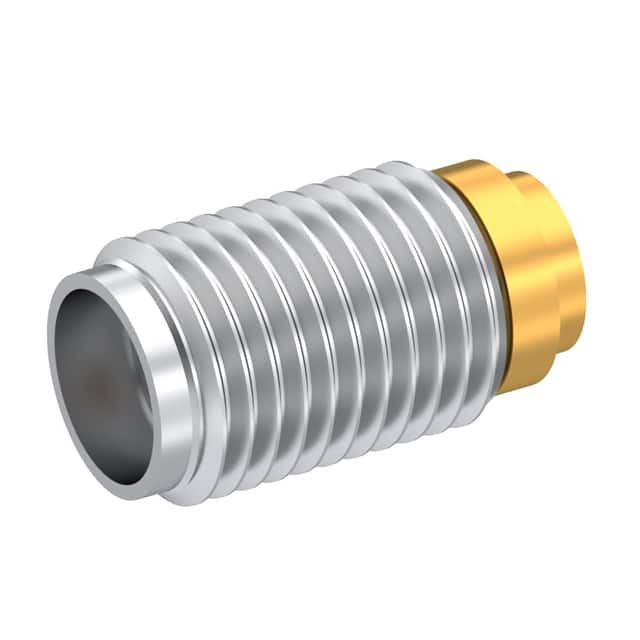

The Radiall R125609011 is an SMA screw-on female receptacle designed for high-reliability RF applications. It features 50 Ω impedance and operates from DC to 26.5 GHz. The VSWR is limited to 1.10 + 0.0100 x F(GHz) maximum, and insertion loss is 0.3 x √F(GHz) dB maximum. The connector handles up to 500 V RMS and provides a dielectric withstanding voltage of 1000 V minimum. Insulation resistance is at least 5000 MΩ.
Mechanically, the receptacle uses threaded panel mounting with solder termination for both shield and contact. The body is stainless steel, center and outer contacts are beryllium copper with gold over nickel plating, and the insulator is PTFE. It includes an aluminium alloy gasket and is hermetically sealed to 1×10⁻⁵ Atm·cm³/s. Operating temperature range is -65°C to +165°C. Center contact retention is 27 N minimum at both ends, and mating life is a minimum of 500 cycles.
