| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Lead Style | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination |

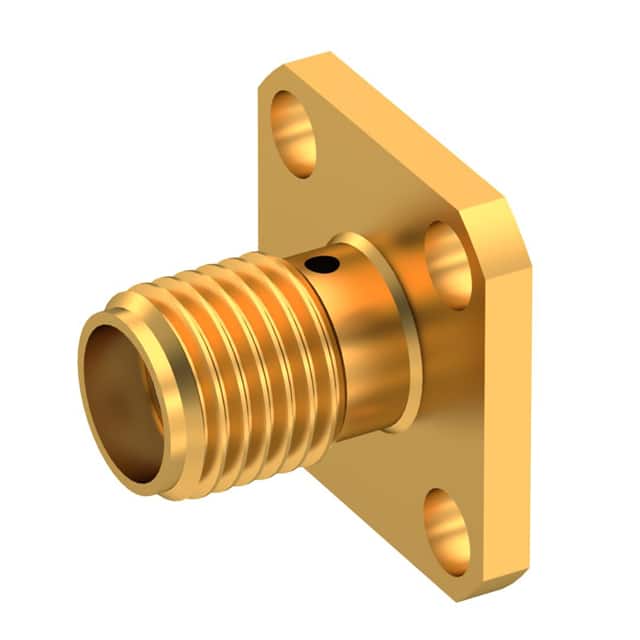

The Radiall R125510000 is an SMA coaxial connector assembly featuring a jack, female socket configuration. It is designed for 50 Ohm impedance systems and supports frequencies up to 18 GHz. The connector uses a threaded fastening type for secure mating.
This connector is panel mounted with a through hole termination and includes a flange for secure attachment. The center contact is made of beryllium copper, and the housing has a gold color. Contact termination is via a solder tab, and the shield is terminated with solder.
Typical applications include RF systems requiring a reliable 50 Ohm interface up to 18 GHz. The panel mount design with flange allows for robust installation in enclosures or bulkheads.
| Qty | Low | High |
|---|---|---|
| 100+ | $32.23 | $32.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 Ohm.
18 GHz.
SMA jack, female socket.
Panel mount with flange, through hole.
Threaded.
Solder tab.
