R125465011 Radiall R125465011 is an SMA jack, female socket receptacle with panel mount flange. It features 50 Ohm impedance, 0-18 GHz frequency range, and compression contact termination.
Mfr Part #:

R125465011

Available from 1 distributors
Mfr Name: Radiall
Radiall
Radiall R125465011 is an SMA jack, female socket receptacle with panel mount flange. It features 50 Ohm impedance, 0-18 GHz frequency range, and compression contact termination.
✓ Total Stock: 10 pcs
$ Price Range: $37.90

R125465011 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R125465011 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Approval Agency
Body Material
Center Contact Material
Center Contact Plating
Connector Style
Connector Type
Contact Termination
Dielectric Withstanding Voltage
Fastening Type
Frequency
Frequency Range
Housing Color
Impedance
Insertion Loss
Insulation Resistance
Insulator Material
Mounting Feature
Mounting Type
Number of Ports
Operating Temperature Range
Shield Termination
VSWR
Voltage Rating
Weight
View Similar Products (0)

R125465011 Description

Short technical summary and product information.

This is an SMA coaxial connector receptacle from Radiall, part number R125465011. It is a 2-hole flange jack receptacle with an EMI gasket, designed for 0.5 mm diameter center contact. The connector features a stainless steel passivated body, PTFE insulator, and beryllium copper center contact with gold over nickel plating.



Electrical characteristics include 50 Ohm impedance, operating frequency from DC to 18 GHz, maximum VSWR of 1.06 + 0.0025 x F(GHz), and maximum insertion loss of 0.07√F(GHz) dB. RF leakage is - (60 - F(GHz)) dB maximum. Voltage rating is 500 Veff maximum, with dielectric withstanding voltage of 1000 Veff minimum and insulation resistance of 5000 MΩ minimum.



Mechanically, the connector uses threaded fastening, screw shield termination, and compression contact termination. Center contact retention is 27 N minimum at both mating and opposite ends. Mating life is 500 cycles minimum. Operating temperature range is -65 to +125 °C. Weight is 1.83 g. Standard packaging is 100 pieces per unit.



This connector is suitable for RF applications requiring reliable performance up to 18 GHz. The EMI gasket provides enhanced shielding. Panel mounting with flange ensures secure installation.

R125465011 Quick Information

Product Type: Coaxial Connector (RF) Assembly
Series: SMA

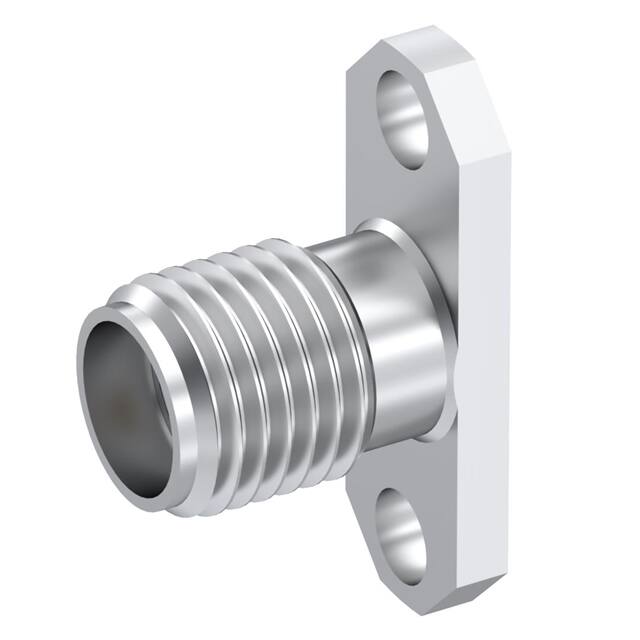

Canonical Name: Radiall R125465011 SMA 2-Hole Flange Jack Receptacle with EMI Gasket
Subcategory: SMA Jack Receptacle

R125465011 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R125465011 Estimated Pricing

Qty Low High
100+ $37.90 $37.90

Estimated market price range - modelled values for guidance only, not live distributor offers.

R125465011 Features

  • 50 Ohm impedance with DC to 18 GHz frequency range.
  • Panel mount flange with threaded fastening.
  • Compression termination for 0.5 mm diameter center contact.
  • EMI gasket for enhanced RF shielding.
  • Stainless steel passivated body and gold-plated center contact.

R125465011 Applications

  • Ideal for RF signal transmission up to 18 GHz.
  • Used in telecommunications and test equipment.
  • Suitable for panel-mounted coaxial connections.
  • Applicable in military and aerospace RF systems.

R125465011 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the voltage rating of the R125465011?

500 Veff maximum.

What is the mounting type?

Panel mount with flange.

What is the impedance of this connector?

50 Ohm.

What is the frequency range?

0 to 18 GHz.

What is the operating temperature range?

-65 to +125 °C.

What is the center contact material and plating?

Beryllium copper with gold over nickel plating.

What is the standard packaging quantity?

100 pieces per unit.
