| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
19 pcs
|
19 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Body Material | |
| Center Contact Material | |
| Center Contact Plating | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Features | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Insulator Material | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Operating Temperature Range | |
| Shield Termination | |
| Weight |

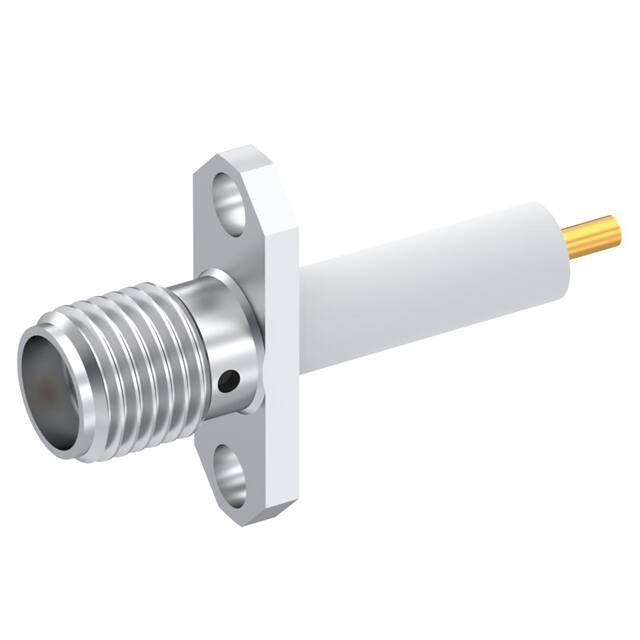

The Radiall R125464271 is an SMA coaxial connector jack receptacle designed for RF applications. It features a 2-hole flange mounting style with a female socket center contact and threaded coupling for secure connections.
This connector offers 50 Ohm impedance and operates from DC to 18 GHz with a maximum VSWR of 1.06 + 0.002 x F(GHz) and insertion loss of 0.07*sqrt(F(GHz)) dB. It is rated for 500 Vrms maximum voltage and has a dielectric withstanding voltage of 1000 Vrms minimum.
The connector is constructed with a passivated stainless steel body, beryllium copper center contact with gold plating over nickel, and PTFE insulator. It operates over -65°C to +165°C and has a mating life of 500 cycles minimum. The center contact retention is 27 Nm minimum on both ends.
Standard packaging is 100 pieces per unit. The connector weighs 2.340 grams.
| Qty | Low | High |
|---|---|---|
| 100+ | $27.75 | $27.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 Ohm.
DC to 18 GHz.
500 Vrms.
Panel mount with 2-hole flange, through hole solder termination.
-65°C to +165°C.
Beryllium copper with gold plating over nickel.
500 cycles minimum.
