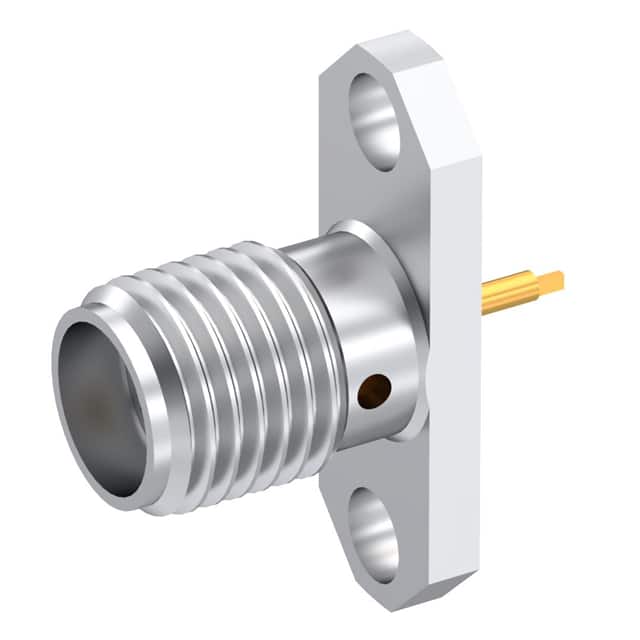

The R125454001 is an SMA coaxial connector jack (female socket) from Radiall, designed for 2-hole flange panel mounting. It features a solder cup contact termination and is constructed with a stainless steel body, beryllium copper center contact, and PTFE insulator.
This connector offers 50 Ohm impedance and operates from DC to 18 GHz. It has a maximum VSWR of 1.04 + 0.004 x F(GHz), insertion loss of 0.05*√F(GHz) dB, and RF leakage of -(100 - F(GHz)) dB. The voltage rating is 500 Veff maximum, with dielectric withstanding voltage of 1000 Veff minimum and insulation resistance of 5000 MOhm minimum.
Mechanically, it provides center contact retention of 27 N minimum at both ends, a minimum torque of 2.8 N.cm, and a mating life of 500 cycles minimum. The operating temperature range is -65°C to +165°C. The body is passivated stainless steel, and the center contact is gold plated over nickel.
The standard package quantity is 100 pieces. The connector is RoHS3 compliant and REACH unaffected, with MSL Level 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 100+ | $24.58 | $24.58 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum voltage rating is 500 Veff.
It is a panel mount connector with a 2-hole flange.
50 Ohms.
DC to 18 GHz.
-65°C to +165°C.
500 cycles minimum.
0.05*√F(GHz) dB maximum.
