| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
35 pcs
|
35 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Body Material | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Insertion Loss | |
| Insulation Resistance | |
| Insulator Material | |
| Mating Life | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Operating Temperature | |
| Plating - Center Contact | |
| Plating Body | |
| RF Leakage | |
| Shield Termination | |
| Standard Package Quantity | |
| Termination Style | |
| Torque | |
| VSWR | |
| Voltage Rating | |
| Weight | |
| center_contact_retention (Minimum @ Mating end) | |
| center_contact_retention (Minimum @ Opposite end) |

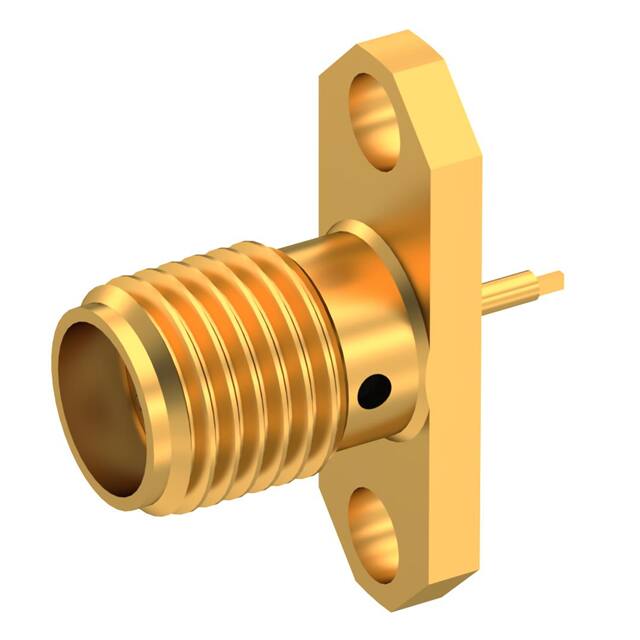

The Radiall R125453000 is a precision SMA coaxial connector designed for reliable RF signal transmission. It features a 2-hole flange panel mount with a solder cup contact termination, making it suitable for semi-permanent cable or PCB connections.
This jack receptacle offers a 50 Ohm impedance and operates from DC to 18 GHz. Key electrical characteristics include a maximum VSWR of 1.04 + 0.004 x F(GHz), maximum insertion loss of 0.05 x sqrt(F(GHz)) dB, and a voltage rating of 500 Veff. The connector is built with a stainless steel body and beryllium copper center contact, both gold plated over nickel for corrosion resistance and signal integrity.
Mechanically, the connector provides a minimum center contact retention force of 27 N at both ends and a mating life of at least 500 cycles. It is rated for an operating temperature range of -65°C to +165°C.
| Qty | Low | High |
|---|---|---|
| 100+ | $37.28 | $37.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The impedance is 50 Ohm.
The frequency range is 0 to 18 GHz.
The maximum voltage rating is 500 Veff.
It uses panel mount with a 2-hole flange.
The operating temperature range is -65°C to +165°C.
